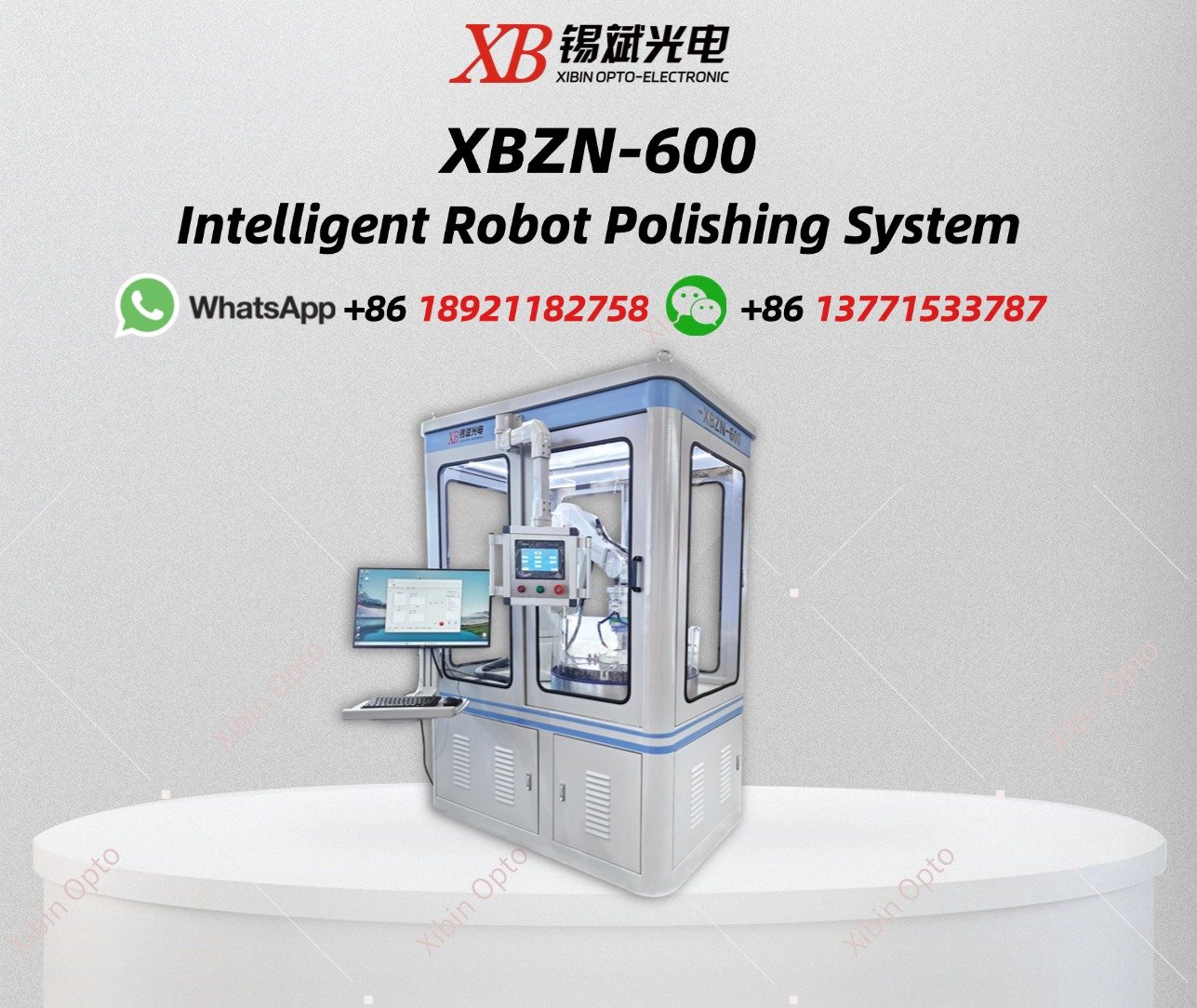

XBZN-600 Intelligent Robot Polishing System
XBZN-600 Intelligent Robot Polishing System

XBZN-600 Intelligent Robot Polishing System

It can achieve deterministic polishing processing of optical components such as large-aperture planar surfaces, spherical surfaces, aspherical surfaces, off-axis aspherical surfaces, and free-form surfaces. Materials for processing optical components:including quartz, glass, ULE, monocrystalline silicon, silicon carbide, sapphire, ceramies and other optical materials, as well as copper, aluminum, nickel and other metal materials
Chat Online Get Free Solution

Product details

XBZN-600 Intelligent Robot Polishing System

It can achieve deterministic polishing processing of optical components such as large-aperture planar surfaces, spherical surfaces, aspherical surfaces, off-axis aspherical surfaces, and free-form surfaces. Materials for processing optical components:including quartz, glass, ULE, monocrystalline silicon, silicon carbide, sapphire, ceramies and other optical materials, as well as copper, aluminum, nickel and other metal materials

Main technical specification

Product Model

XBZN-600

Type of processed components

Plane/sphere/aspheric/free-form surface, etc

Shape of processed components

Circular/elliptical/rectangular/polygonal/irregular inner - open hole shape, etc.

Maximum diameter of processed components

50mm~600mm

Maximum component thickness≤500mm
Rated speed of polishing head

3000rpm

Diameter of worktable700mm
Pressure setting range0~125N
Pressure setting resolution±0.4N
Processing accuracyPlane RMS≤7nm/Aspheric RMS≤10nm
Polished surface roughnessRa≤lnm
Surface finishBetter than Class II
Pose repeat accuracy (ISO9283)±0.05mm
Maximum load -bearing capacity of robotic arm20Kg
Size2300x1900x2500(mm)
WeightAbout 2.2T

All machine can be designed   and manufactured as required.
