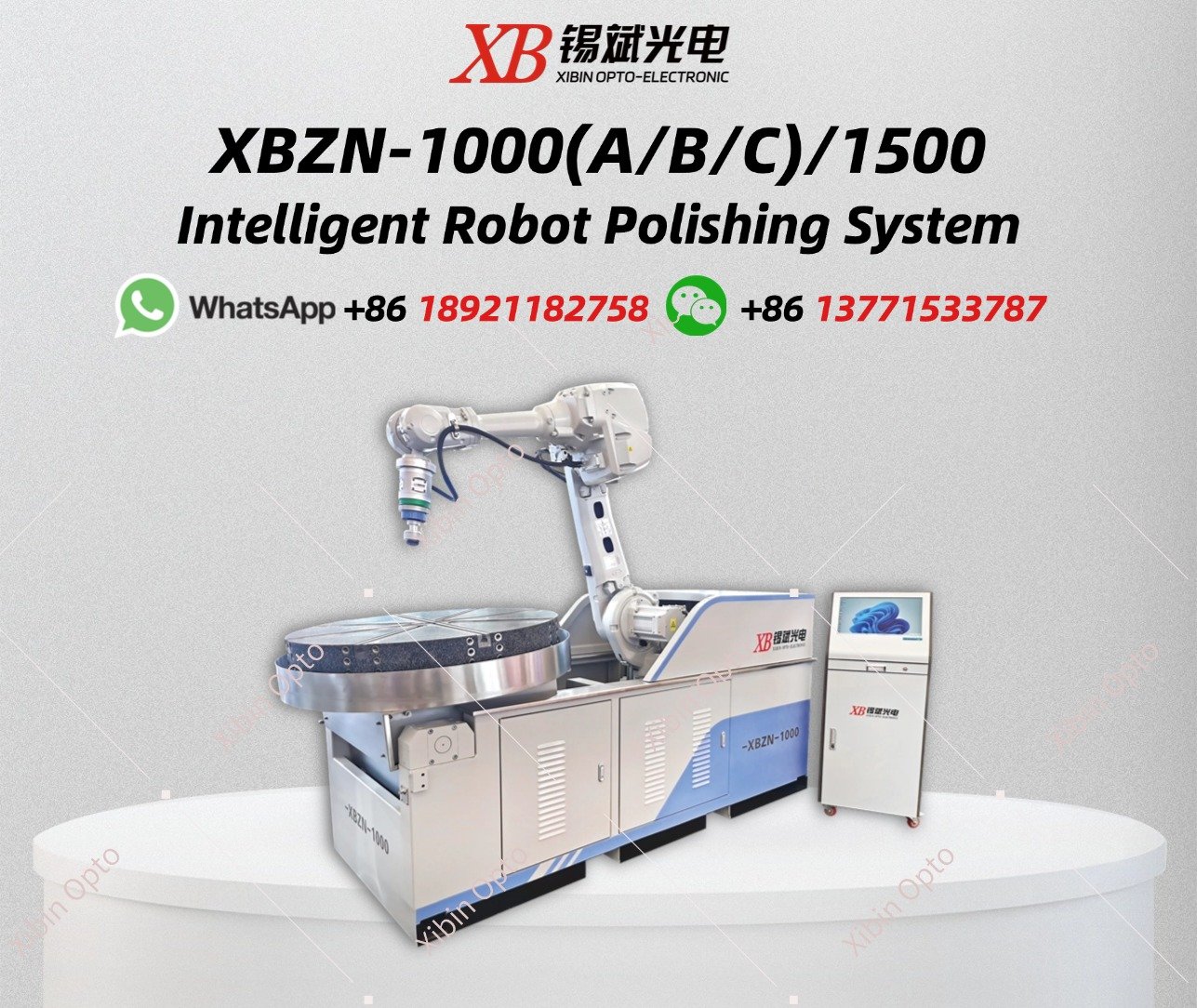

XBZN-1000(A/B/C)/1500 Intelligent Robot Polishing System
It can achieve deterministic polishing processing of optical components such as large-aperture planar surfaces, sphericalsurfaces, aspherical surfaces, off-axis aspherical surfaces, and free-form surfaces. Materials for processing optical components:including quartz, glass, ULE, monocrystalline silicon, silicon carbide, sapphire, ceramics and other optical materials, as wellas copper, aluminum, nickel and other metal materials.
Main technical specification
| Product Model | XBZN-1000A | XBZN-1000B | XBZN-1000C | XBZN-1500 |
Millstone type | TypeA:Fixed Grinding Disc | TypeB:Rotating grinding disc | TypeC:Rotating andflipping grinding disc | Fixed Grinding Disc |
Type of processed components | Plane/sphere/aspheric/free -form surface, etc. |
Shape of processed components | Circular/elliptical/rectangular/polygonal/irregular inner - open hole shape, etc |
| Maximum diameter of processed components | 50mm~1000mm | 50mm~1000mm | 50mm~1000mm | 50mm~1500mm |
| Maximum component thickness | ≤500mm | ≤500mm | ≤500mm | ≤800mm |
| Rated speed of polishing head | 3000rpm | 3000rpm | 3000rpm | 3000rpm |
| Diameter of worktable | 1100mm | 1100mm | 1100mm | 1600mm |
| Pressure setting range | 0~125N | 0~125N | 0~125N | 0~125N |
| Pressure setting resolution | ±0.4N | ±0.4N | ±0.4N | ±0.4N |
| Processing accuracy | Plane RMS≤Tom/Aspheric RMS≤10m | Plane RMS≤Tom/Aspheric RMS≤10m | Plane RMS≤Tom/Aspheric RMS≤10m | Plane RMS≤Tom/Aspheric RMS≤10m |
| Polished surface roughness | Ra≤1nm | Ra≤1nm | Ra≤1nm | Ra≤1nm |
| Surface finish | Better than Class II | Better than Class II | Better than Class II | Better than Class II |
| Pose repeat accuracy (ISO9283) | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Maximum load -bearing capacity of robotic arm | 45Kg | 45Kg | 45Kg | 120Kg |
| Size | 2800x1250x2300(mm) | 2800x1250x2300(mm) | 2800x1250x2300(mm) | 3400x2100x3100(mm) |
| Weight | About 1.75T | About 1.75T | About 1.75T | About 3.2T |
All machine can be designed and manufactured as required. |
|
|
|
