DMYP12B-4/16B-4 Single-plane Pressure Grinding Polisher
DMYP12B-4/16B-4 Single-plane Pressure Grinding Polisher
DMYP12B-4/16B-4 Single-plane Pressure Grinding Polisher

DMYP12B-4/16B-4 Single-plane Pressure Grinding Polisher

Mainly used for wafer, lithium niobate, optical glass, sapphire, valve piece, mechanical seal and super hard material of theplane single side pressure grinding and polishing.
Pressing DISC ROTARY system installed independent active rotation mechanism and three jaw chuck, loading, unloadingthe workpiece is more convenient, fast, drag the motor for frequency control speed, so that pressing disc in any case can beprecision rotary. One-button startup makes the device more intelligent. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

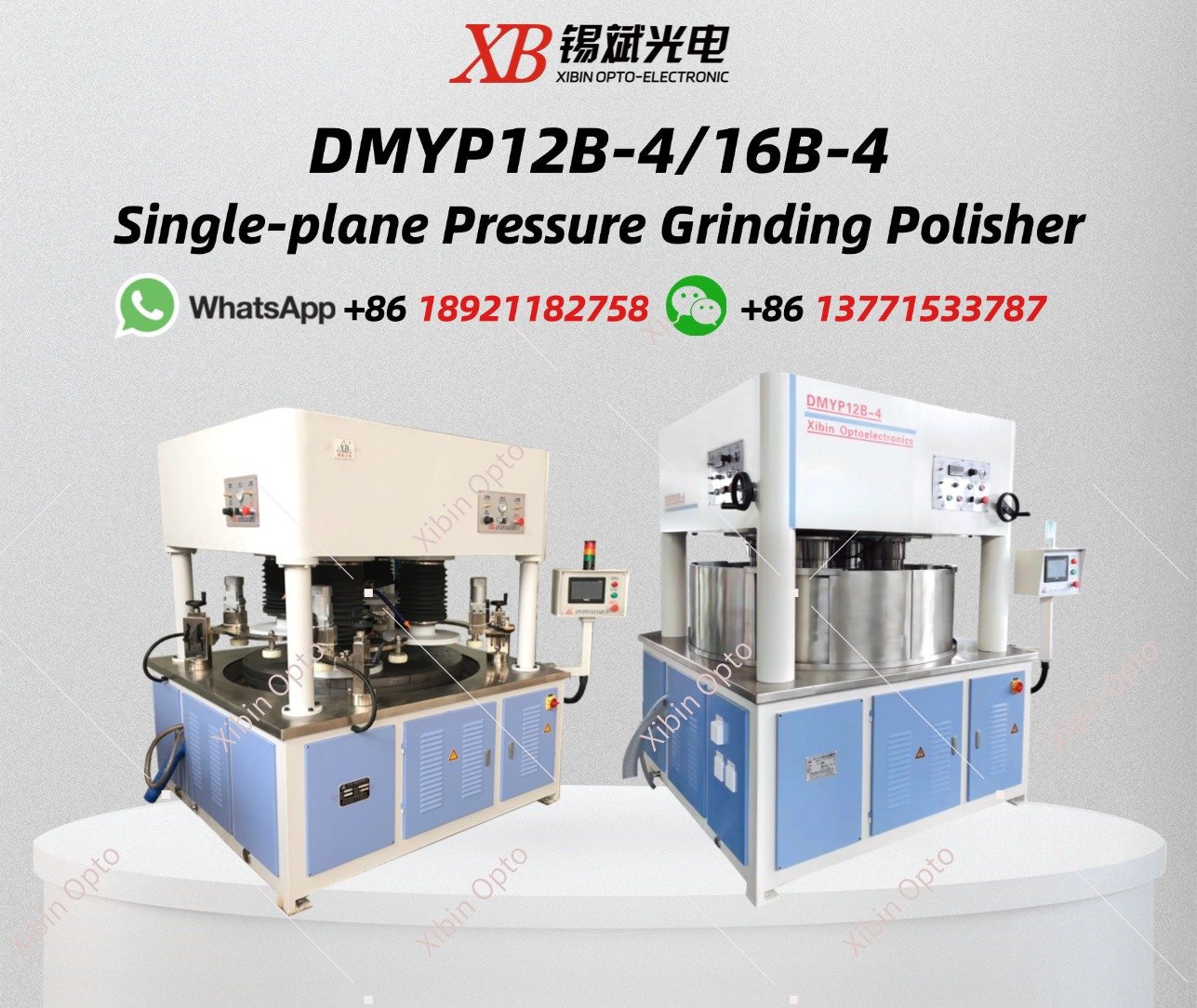

DMYP12B-4/16B-4  Single-plane Pressure Grinding Polisher

Mainly used for wafer, lithium niobate, optical glass, sapphire, valve piece, mechanical seal and super hard material of theplane single side pressure grinding and polishing.

Pressing DISC ROTARY system installed independent active rotation mechanism and three jaw chuck, loading, unloadingthe workpiece is more convenient, fast, drag the motor for frequency control speed, so that pressing disc in any case can beprecision rotary. One-button startup makes the device more intelligent. (Optional touch screen and knob for operation)

Main technical specification

Product Model

DMYP12B-4

DMYP16B-4

Millstone dia

Ф1200 mm

Ф1600 mm

Processing scope

≤Ф440 mm

≤Ф500 mm

Processing station

4pcs

4pcs
Millstone rotating speed0,6~30RPM0,4~20RPM
Jumpiness of millstone

≤0.08mm

≤0.10mm

Jumpiness of single point≤0.02mm≤0.02mm
Lifting height of pressure plate250mm250mm
Rotating speed of pressure plate0,6~30RPM0,6~30RPM
Pressure of pressure plate0.5 Mpa250kg0.5 Mpa250kg
Total power22kW/380V32kW/380V
Size1850x1750x2150(mm)2200x2200x2500(mm)
WeightAbout 4500kgAbout 6000kg

All machine can be designed   and manufactured as required.
