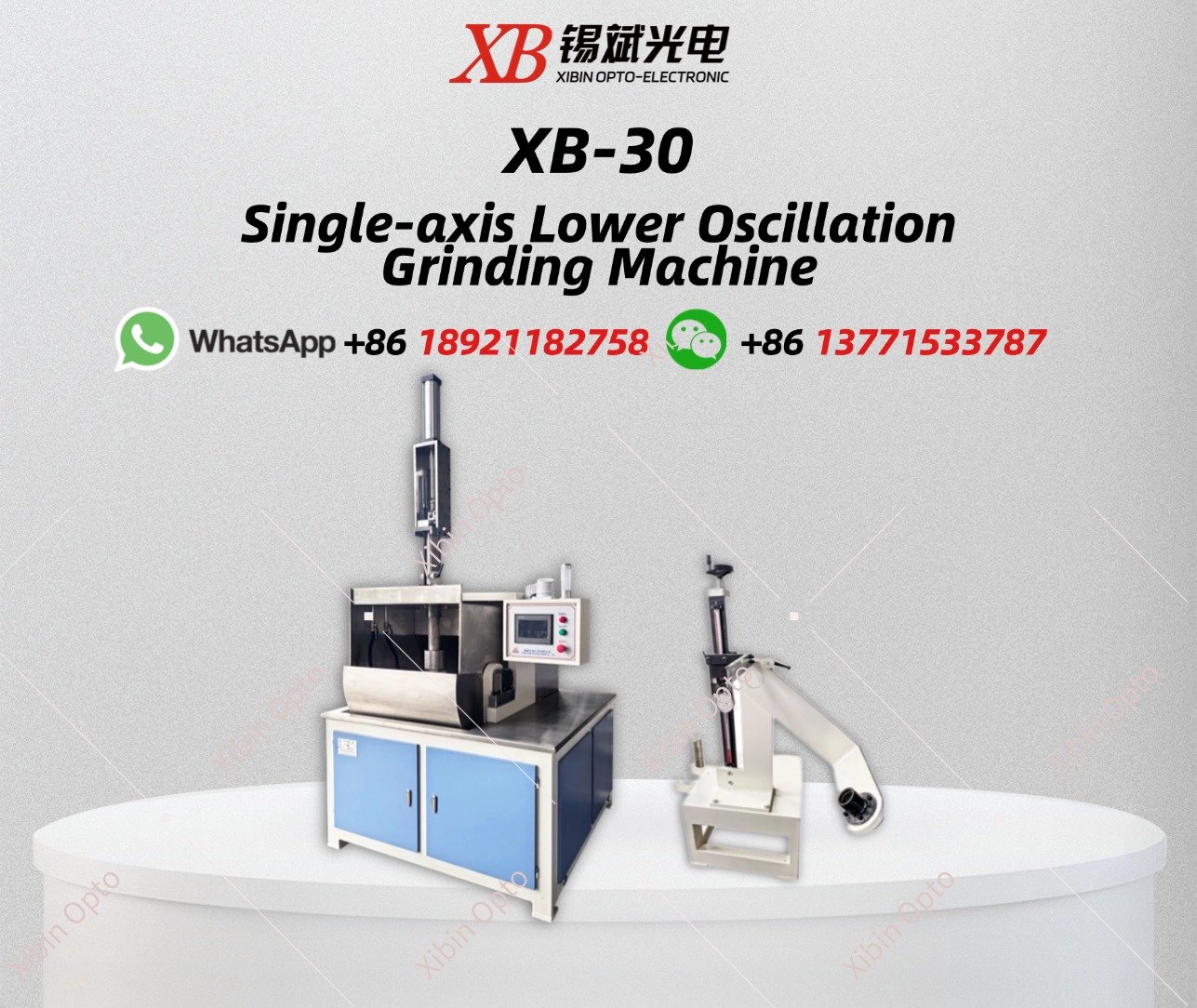

XB-30 Single-axis Lower Oscillation Grinding Machine
XB-30 Single-axis Lower Oscillation Grinding Machine

XB-30 Single-axis Lower Oscillation Grinding Machine

This machine is a precision special -purpose equipment for fine grinding and polishing of spherical lenses, designed
specifieally for the optical cold working industry. It is suitable for processing convex and concave spherical lenses made
of optical glass, glass-ceramie, quartz and other materials with specifieations fromФ50mm to Ф350mm.
Chat Online Get Free Solution

Product details

XB-30 Single-axis Lower Oscillation Grinding Machine

This machine is a precision special -purpose equipment for fine grinding and polishing of spherical lenses, designed

specifieally for the optical cold working industry. It is suitable for processing convex and concave spherical lenses made

of optical glass, glass-ceramie, quartz and other materials with specifieations fromФ50mm to Ф350mm.

Main technical specification

Product Model

XB-30

Machining dia

Ф≥50~Ф≤300mm

Curvature Radius Range

R50~R500mm

Spindle Rotational Speed

0,58~288RPM

Oscillating Shaft Speed

0,5~25RPM

Lower Shaft Oscillation Angle±10°
Oscillating Base Adjustment Range0~90mm
Working Air Pressure

0.4~ 0.6MPa

Total power6KW/380V
Size1520 x 1560 x 3040(mm)
WeightAbout 400kg

All machine can be designed   and manufactured as required.
