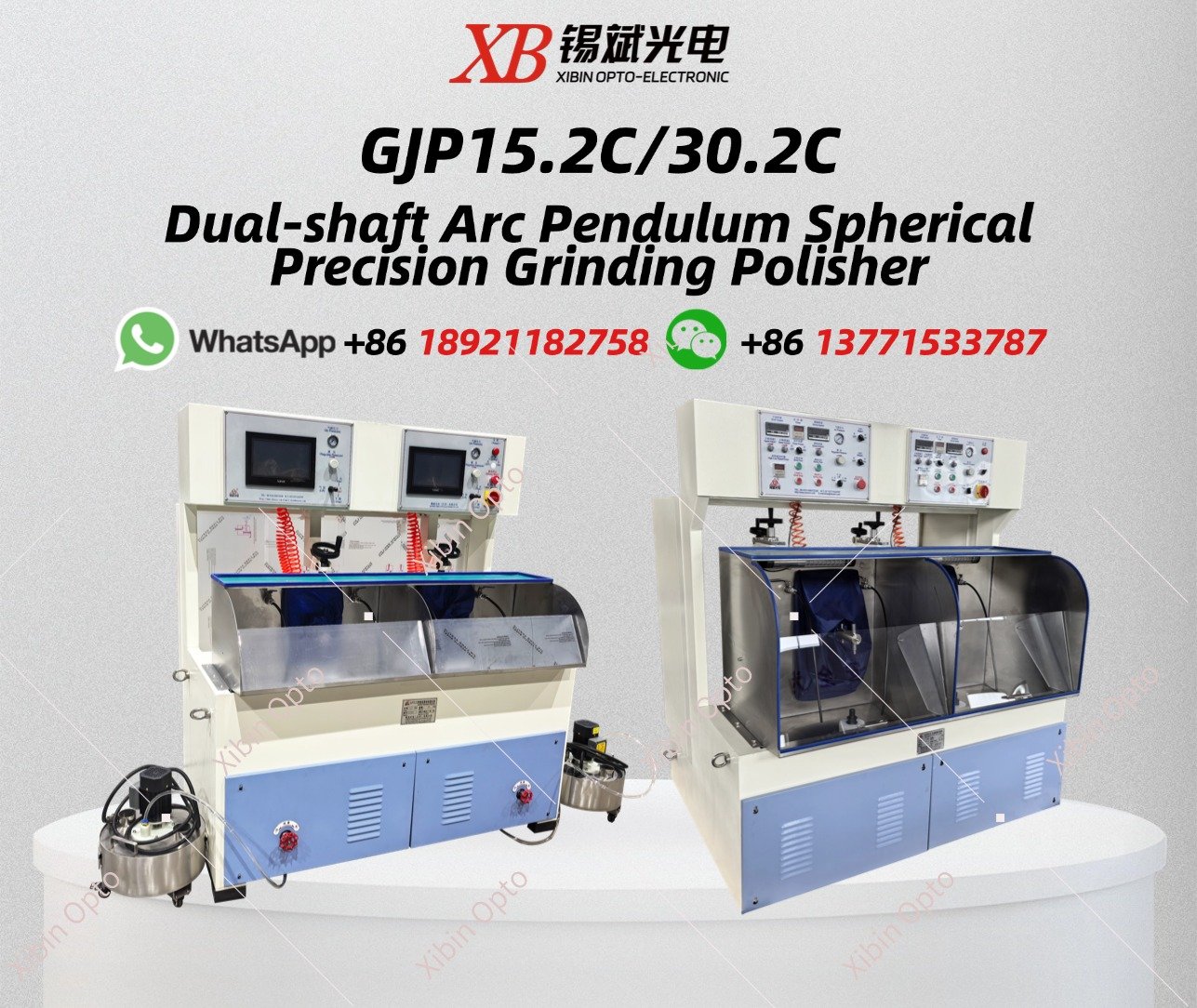

GJP15.2C/30.2C Dual-shaft Arc Pendulum Spherical Precision Grinding Polisher
GJP15.2C/30.2C Dual-shaft Arc Pendulum Spherical Precision Grinding Polisher

GJP15.2C/30.2C Dual-shaft Arc Pendulum Spherical Precision Grinding Polisher

It is used for grinding and polishing of spherical mirror, and also for precision grinding and polishing of concaveand convex lens with larger diameter. The tripod uses an electrically controlled pneumatic device, which can be lifted andlowered arbitrarily. The swing frame is are swing motion, arc swing angle is -30- +45degrees. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

GJP15.2C/30.2C Dual-shaft Arc Pendulum Spherical Precision Grinding Polisher

It is used for grinding and polishing of spherical mirror, and also for precision grinding and polishing of concaveand convex lens with larger diameter. The tripod uses an electrically controlled pneumatic device, which can be lifted andlowered arbitrarily. The swing frame is are swing motion, arc swing angle is -30- +45degrees. (Optional touch screen and knob for operation)

Main technical specification

Product Model

GJP15.2C

GJP30.2C

Machining dia

Ф20~Ф100mm

≤Ф300mm

Speed of main shaft

0,300~1500RPM

0,600~3000RPM

0,100~ 500RPM
Screw thread of main shaft

M27x3

M27x3
Amount of main shaft

Two shafts

Two shafts

Precision of main shaft≤ 0.02mm≤ 0.02mm
Swing times of swing shelf0,8 ~40 times/min0,30~ 150 times/min
Swing amplitude angle

-30°~+45°

-30°~+45°
Pneumatic pressure≥0.5MPa≥0.5MPa
Total power2kW/380V5kW/380V
Size1100x 1050x1800(mm)1750 x 1350 x 2000(mm)
WeightAbout 400kgAbout 1500kg

All machine can be designed   and manufactured as required.
