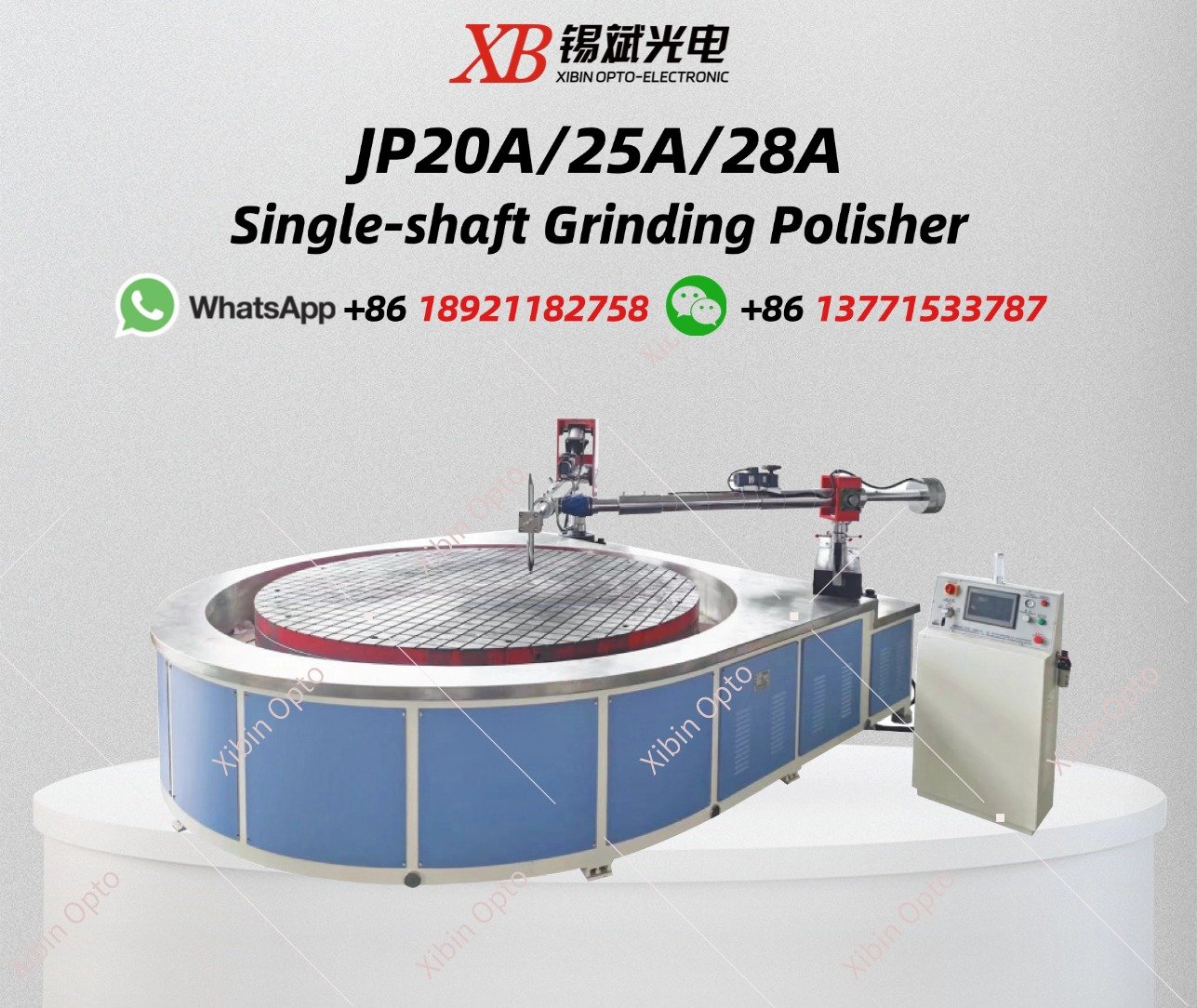

JP20A/25A/28A Single-shaft Grinding Polisher
Mainly used for the grinding and polishing of large plane and large spherical mirrors, as wellas the precision grinding and polishing of metal or non-metal moulds.
Spindle speed, swing shelf swing times can be adjusted according to the needs of machining parts separately frequency conversion, and the pressure of the swing shelf should be controlled by pneumatic pressure or be adjusted by using the balancing weight. (Optional touch screen and knob for operation)
Main technical specification
| Product Model | JP20A | JP25A | JP28A |
Millstone dia | Ф2000 mm | Ф2500 mm | Ф2800 mm |
Processing scope | ≤Ф1600 mm | ≤Ф2000 mm | ≤Ф2200 mm |
Millstone rotating speed | 0,2~ 10RPM | 0,2~ 10RPM | 0,2~ 10RPM |
| Main swing rod | Adjust range of swing plate 450mm Scope of swing rod ± 20° Amount of swing: 0,50 - 10times/min (Stepless speed regulation)Scope of swing rod shrink 300mm | Adjust range of swing plate 600mm Scope of swing rod ± 20° Amount of swing:0,50 ~ 10times/min (Stepless speed regulation)Scope of swing rod shrink 400mm | Adjust range of swing plate 600mm Scope of swing rod+20° -10° Amount of swing: 0,30 ~ 10times/min (Stepless speed regulation) Scope of swing rod shrink 750mm |
| Vice swing rod | Iron pen holder extended range≤600mm | Iron pen holder extended range≤800mm | Iron pen holder extended range≤400mm |
The distance between the centerof the thimble and the millstone | ≤800mm | ≤800mm | ≤800mm |
| Jumpiness of millstone | ≤0.20mm | ≤0.20mm | ≤0.20mm |
| Total power | 20kW/380V | 20kW/3801 | 17.5kW/380V |
| Size | 3800 x 3500x 2500(mm) | 4800x3500x2500(mm) | 4800x4100x2500(mm) |
| Weight | About 9000kg | About 12000kg | About 18000kg |
All machine can be designed and manufactured as required. |
