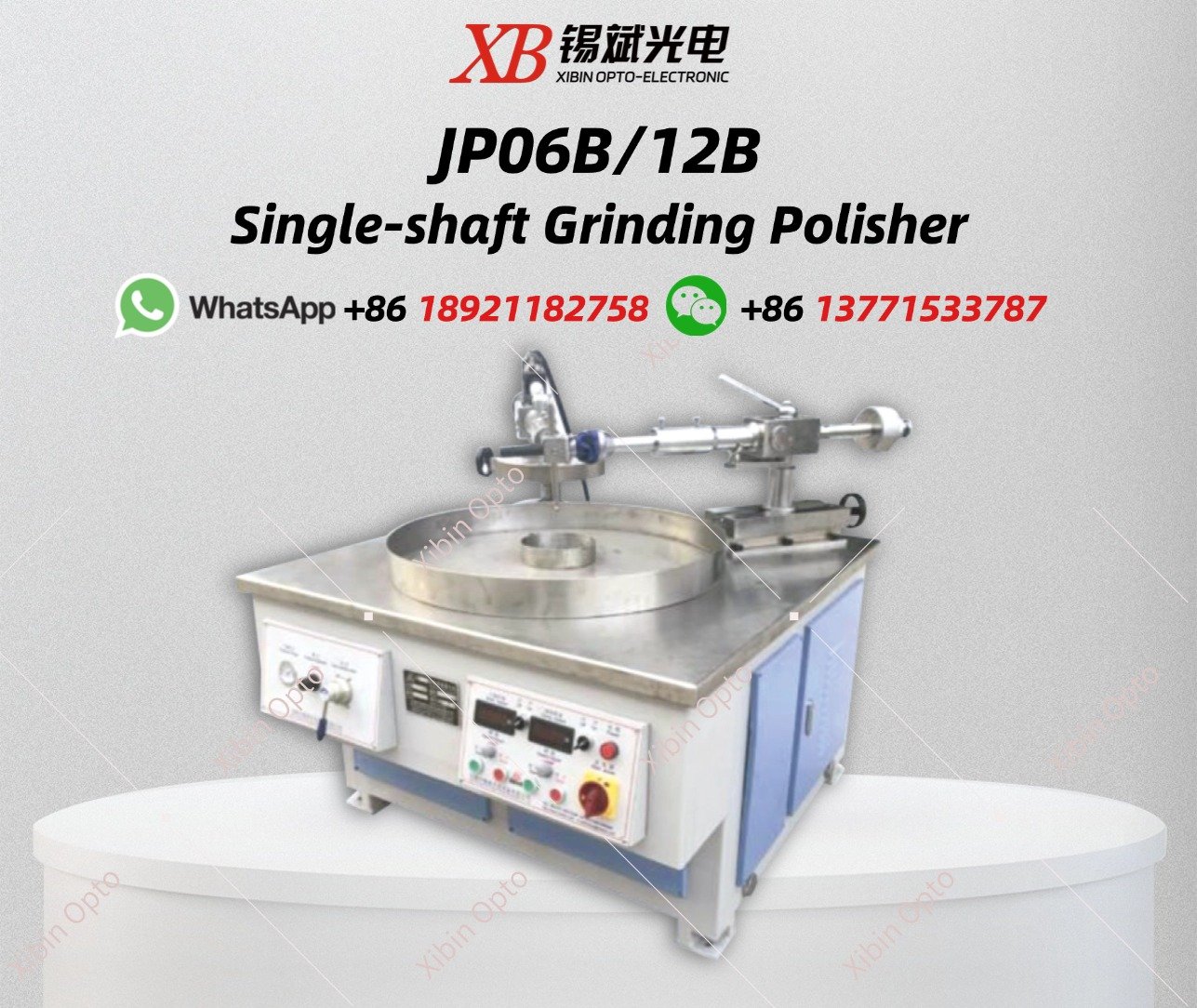

JP06B/12B Single-shaft Grinding Polisher
Mainly used for the grinding and polishing of plane and spherical mirrors, as well as the precision grinding and polishing of metal or non-metal moulds.
Spindle speed, swing shelf swing times can be adjusted according to the needs of machining parts separately frequency conversion, and the pressure of the swing shelf should be controlled by pneumatic pressure or be adjusted by using thebalancing weight. The main and auxiliary pendulum has the function of stretching and adjusting, which fully meets the needs of processing.(Optional touch screen and knob for operation)
Main technical specification
| Product Model | JP06B | JP12B |
Millstone dia | Ф600 mm | Ф1200 mm |
Processing scope | ≤Ф400 mm | ≤Ф1000 mm |
Millstone rotating speed | 0,10 ~ 50RPM | 0,6~30RPM |
| Spindle connection size | Spindle Thread M56x 5.5Setting circle60 | / |
| Precision of main shaft | Radial and axial run-out ≤0.02mm | Jumpiness of millstone ≤0.10mm |
| Main swing rod | Telescopic adjustable 140mm Swingleverlift:+20°-10° (Stepless speed regulation) Scope of swing rod shrink 100mm Amount of swing:0,10~50times/min | Telescopic adjustable 300mm Swing lever lift:+20°-10° (Stepless speed regulation) Scope of swing rod shrink 100mm Amount of swing:0,6~30times/min |
| Vice swing rod | Stroke range of the iron pen holder 100mm Adjusting range of eccentric disk 140mm | Stroke range of the iron pen holder 300mm Adjusting range of eccentric disk 200mm |
The distance between the centerof the thimble and the millstone | 220mm | 400mm |
| Pneumatic pressure | 3~80kg | 3~120kg |
| Total power | 3.2kW/380V | 8.5kW/380V |
| Size | 1360x1290x1200(mm) | 2020x2160x1680(mm) |
| Weight | About 750kg | About 2800kg |
All machine can be designed and manufactured as required. |
