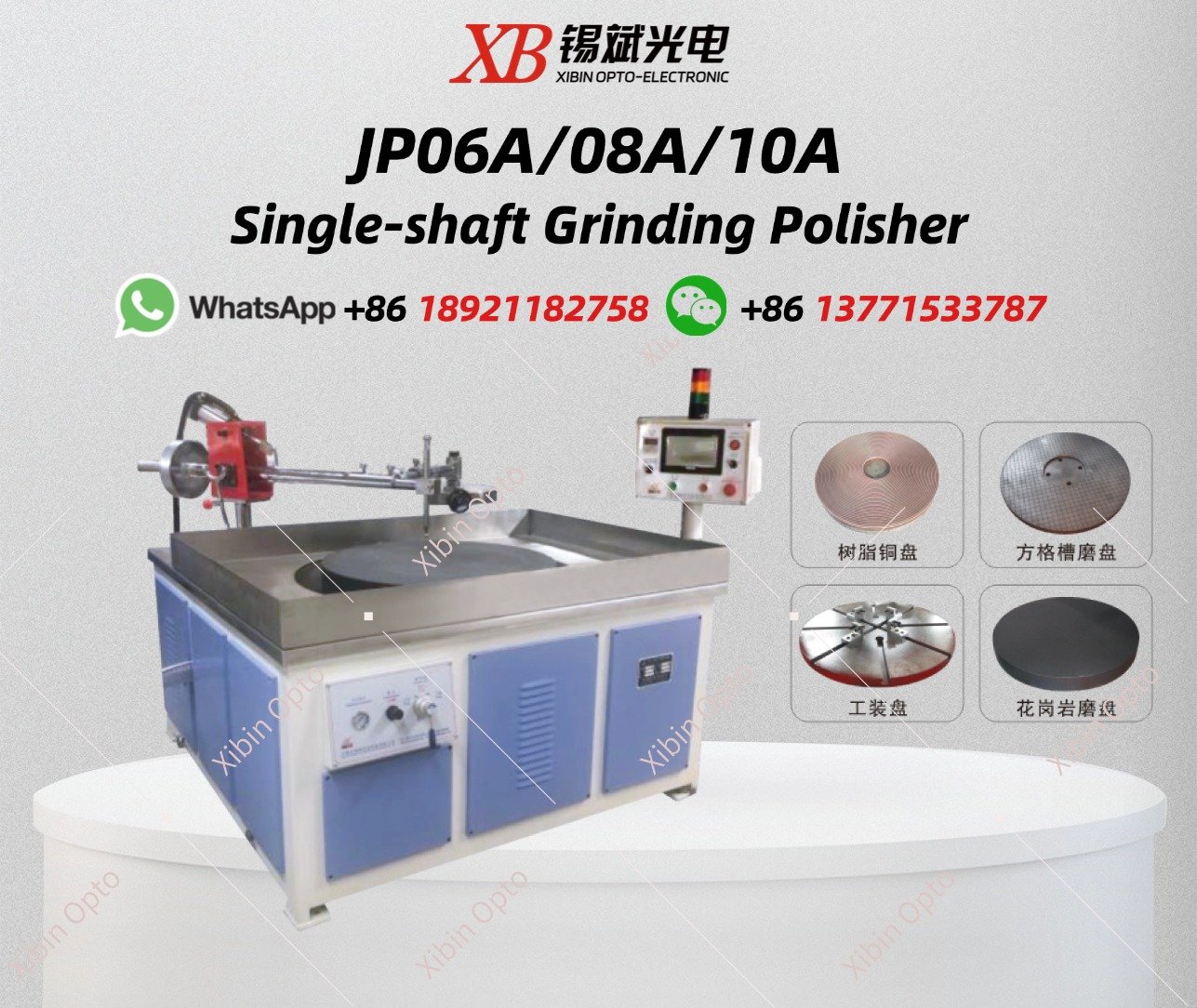

JP06A/08A/10A Single-shaft Grinding Polisher
Mainly used for the grinding and polishing of plane and spherical mirrors, as well as the precision grinding and polishing of metal or non-metal moulds
Spindle speed, swing shelf swing times can be adjusted according to the needs of machining parts separately frequencyconversion, and the pressure of the swing shelf should be controlled by pneumatic pressure or be adjusted by using the balancing weight. (Optional touch screen and knob for operation)
Main technical specification
| Product Model | JP06A | JP08A | JP10A |
Millstone dia | Ф600 mm | Ф800 mm | Ф1000 mm |
Processing scope | ≤Ф400 mm | ≤Ф600 mm | ≤Ф800 mm |
Speed of main shaft | 0,10~ 50RPM | 0,10~ 50RPM | 0,8~40RPM |
| Spindle connection size | Spindle ThreadM56 x 5.5 Setting circleФ60 | Spindle ThreadM68 x 6 Setting circleФ72 | / |
| Precision of main shaft | Axial and radial run-out ≤0.02mm | Axial and radial run-out ≤0.02mm | Axial and radial run-out ≤0.08mm |
| Main swing rod | Eccentricity disk maximu madjustable eccentricity: 140mm Swing lever lift:+20°-10° Speed: 0,10~50times/min Swing rod shrink range 200mm | Eccentricity disk maximu madjustable eccentricity: 170mm Swing lever lift:+20°-10° Speed: 0,10 ~ 50times/min Swing rod shrink range 200mm | Eccentricity disk maximu madjustable eccentricity: 200mm Swing lever lift:+20°-10° Speed: 0,8 ~ 40times/min Swing rod shrink range 300mm |
| Vice swing rod | Iron pen holder extended range 100mm | Iron pen holder extended range 140mm | Iron pen holder extended range 150mm |
The distance between the centerof the thimble and the millstone | 220mm | 280mm | 300mm |
| Pneumatic pressure | 3~80kg | 30~120kg | 30~120kg |
| Total power | 3.2kW/380V | 4.6kW/380V | 8.5kW/380V |
| Size | 1360 x 1300 x 1200(mm) | 1900 x 1700 x1400(mm) | 2100 x2000 x 1500(mm) |
| Weight | About 750kg | About 1300kg | About 2300kg |
All machine can be designed and manufactured as required. |
