Mainly used for high-precision optical glass, quartz wafer, ceramics, silicon wafer, sapphire and other planar elements ofprecision polishing equipment, suitable for batch parts polyurethane polishing. The four processing stations separately flatpendulum and pressure, the pendulum and pressure can be adjusted independently according to the requirements of machining parts

Chat Online Get Free Solution

Product details

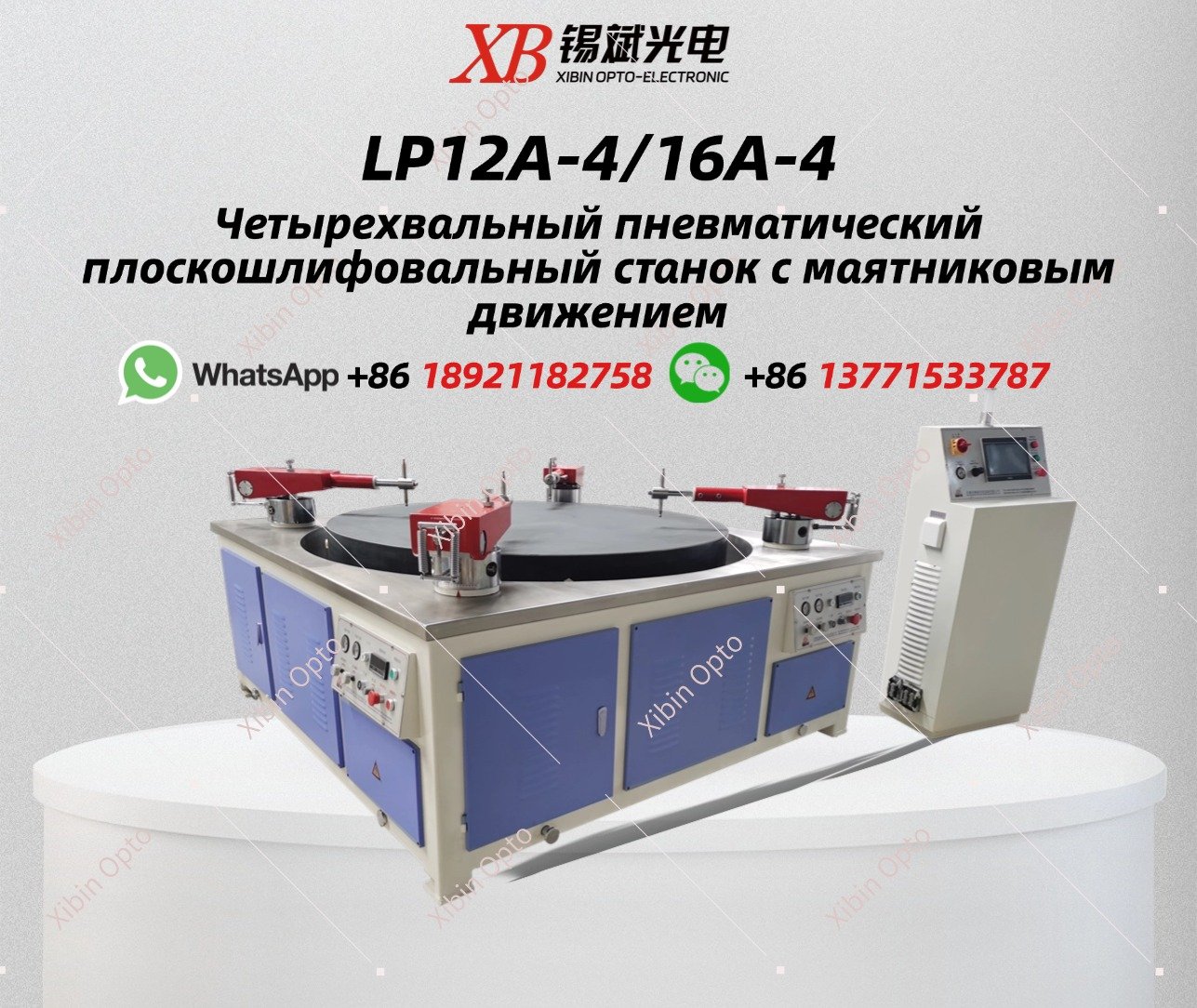

LP12A-4/16A-4 Four-shaft Pneumatic Flat Pendulum Ring Polisher Mainly used for high-precision optical glass, quartz wafer, ceramics, silicon wafer, sapphire and other planar elements ofprecision polishing equipment, suitable for batch parts polyurethane polishing. The four processing stations separately flatpendulum and pressure, the pendulum and pressure can be adjusted independently according to the requirements of machining parts.

Main technical specification

Product Model	LP12A-4	LP16A-4
Millstone size (granite)	Ф1200 mm	Ф1600 mm
Jumpiness of millstone	≤0.08mm	≤0.1mm
Jumpiness of single point Jumpiness of millstone	≤0.02mm	≤0.02mm
Millstone rotating speed	0,4~20RPM	0,3~15RPM
Processing scope	≤Ф280mm	≤Ф320mm
Swing settime	0,10~ 50times/min	0,8 ~40times/min
PLCoperation panel	AH102L(15")	AH102L(15")
Swing Angle	40°	40°
Pneumatic pressure	0.6MPa	0.6MPa
Total power	12kW/380V	18kW/380V
Weight	About2000kg	About3300kg
Size	1850x 1850 x 1100(mm)	2100 x2100 x 1430(mm)
All machine can be designed and manufactured as required.
