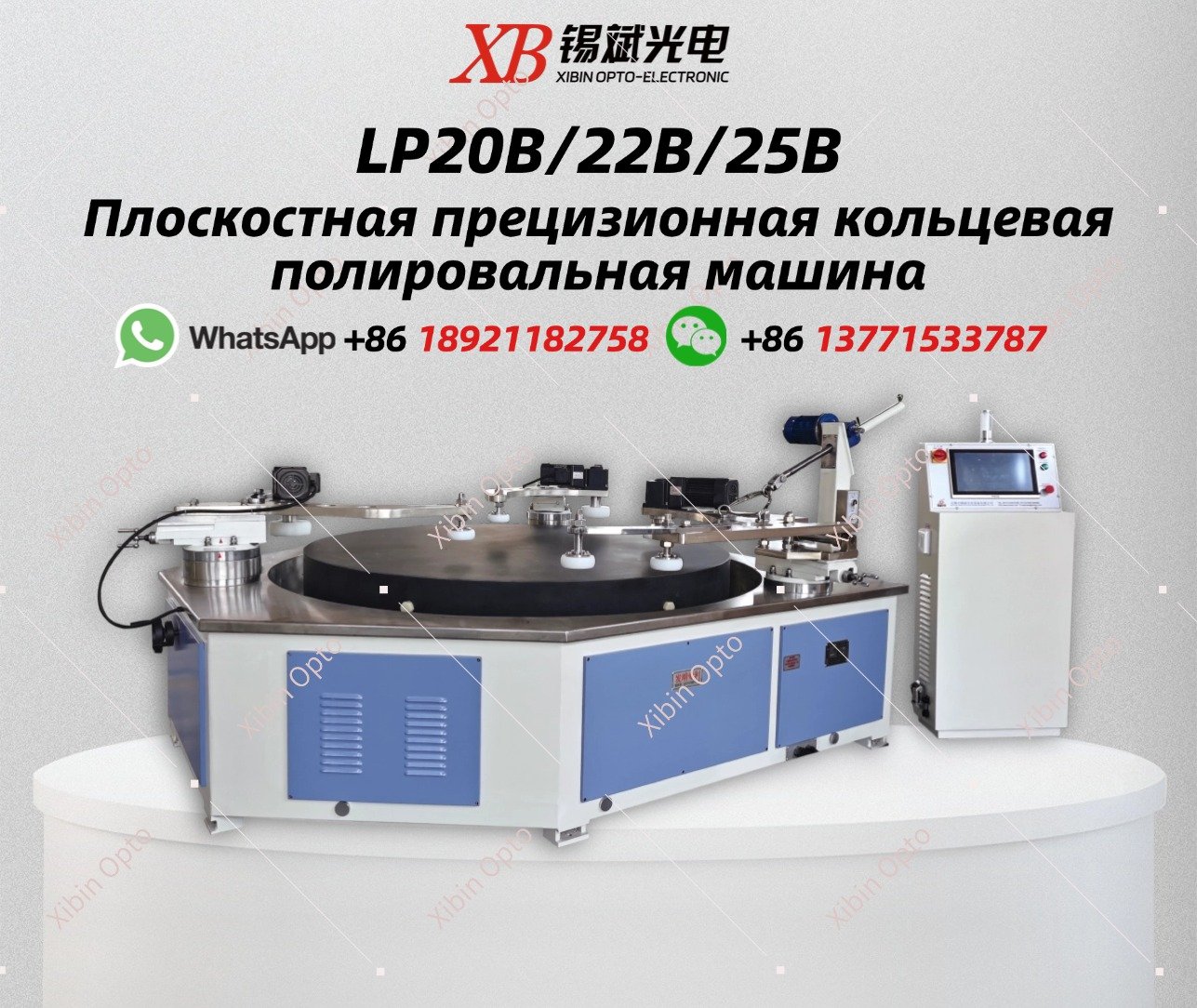

LP20B/22B/25B Plane Precision Ring Polisher

Contact Us

Telephone: +86510-85072226-8702
Fax: +86510-85072276
Wechat: +8618118892692
Whatsapp: +8618961687831
Email: xboe@xboecn.com; xboewx@xboecn.com
R&d Base: Building 19,216 Xitai Road,Xinwu District,Wuxi City,Jiangsu Province
Production Base: No.128 Chunhui West Road,Hede Town,Sheyang Country,Yancheng

Mainly used for precision polishing of planar elements such as high-precision optical glass, quartz, crystal,ceramics, silicon wafer and sapphire. The driving wheel rotation mechanism plays a good rotation function formachining parts. The correcting plate is optional for electric lifting device, and the equipment has a circular shape.

Chat Online Get Free Solution

Product details

LP20B/22B/25B Plane Precision Ring Polisher Mainly used for precision polishing of planar elements such as high-precision optical glass, quartz, crystal,ceramics, silicon wafer and sapphire. The driving wheel rotation mechanism plays a good rotation function formachining parts. The correcting plate is optional for electric lifting device, and the equipment has a circular

Main technical specification

Product Model	LP20B	LP22B	LP25B
Millstone size(granite)	Ф2000 mm	Ф2200 mm	Ф2500 mm
Workpiece ring size	Ф800xФ650x70	Ф850xФ700x70	Ф950xФ750x70
Jumpiness of millstone	≤0.08mm	≤0.10mm	≤0.10mm
Jumpiness of single point	≤0.0lmm	≤0.0lmm	≤0.0lmm
Correcting plate size	Ф1050x110mm	Ф1150x110mm	Ф1310x110mm
Millstone rotating speed	0,1~3RPM	0,1~3RPM	0~3RPM
Processing scope	≤650mm	≤700mm	≤750mm
Callipers travel distance	0~200mm	0~200mm	0~200mm
Total power	11kW/380V	11.5kW/380V	15kW/380V
Weight	About 6000kg	About 7800kg	About 11000kg
Size	2900x2600x1480(mm)	3450x2950x1700(mm)	3450x3150x1560(mm)
All machine can be designed and manufactured as required.
