Mainly used for high precision optical glass, quartz, crystal, ceramics, silicon chip, sapphire and other
plane elements precision polishing.
The LP12B/10B plane precision ring polisher increases the rotation structure of the active wheel on the
basis of LP12A/10A, and has a good rotation function for the processing parts.

Chat Online Get Free Solution

Product details

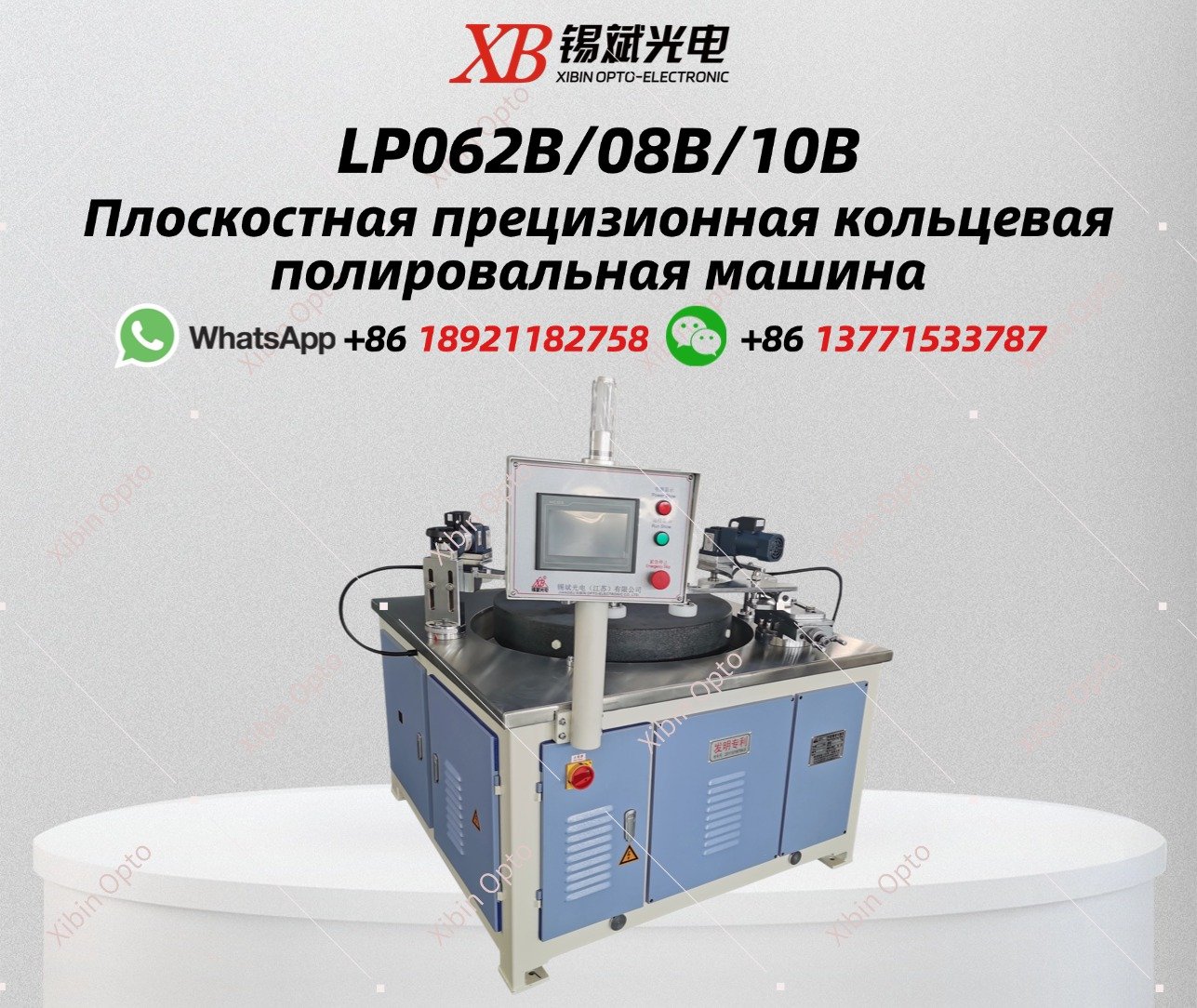

LP062B/08B/10B Plane Precision Ring Polisher

Mainly used for high precision optical glass, quartz, crystal, ceramics, silicon chip, sapphire and other

plane elements precision polishing.

The LP12B/10B plane precision ring polisher increases the rotation structure of the active wheel on the

basis of LP12A/10A, and has a good rotation function for the processing parts.

Main technical specification

Product Model	LP062B	LP08B	LP10B
Millstone size (granite)	Ф620 mm	Ф800 mm	Ф1000 mm
Workpiece ring size	Ф250xФ200x40	Ф340xФ280x40	Ф410xФ350x40
Jumpiness of millstone	≤0.06mm	≤0.06mm	≤0.06mm
Jumpiness of single point	≤0.01mm	≤0.01mm	≤0.01mm
Correcting plate size	Ф320x40mmm	Ф450x60mm	Ф550x60mm
Millstone rotating speed	0,2~ 10RPM	0,2~ 10RPM	0,2~ 8RPM
Processing scope	≤Ф200mm	≤Ф280mm	≤Ф350mm
Total power	2.5kW/380V	2.7kW/380V	2.7kW/380V
Weight	About 900kg	About 1300kg	About 1500kg
Size	1220x920x1320(mm)	1300x1400x1320(mm)	1400x1500x1320(mm)
All machine can be designed and manufactured as required.
