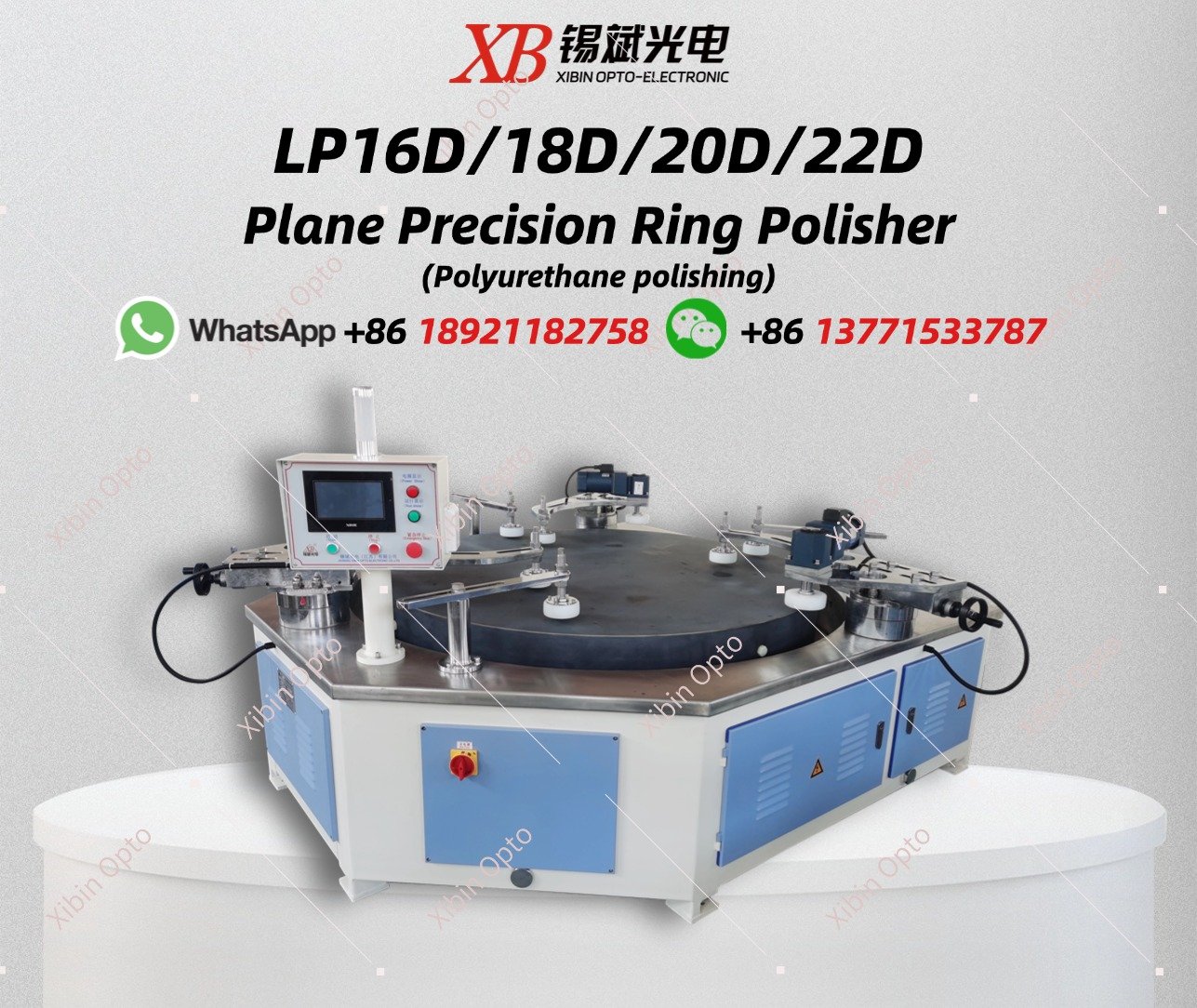

LP16D/18D/20D/22D Plane Precision Ring Polisher (Polyurethane polishing)

Contact Us

Telephone: +86510-85072226-8702
Fax: +86510-85072276
Wechat: +8618118892692
Whatsapp: +8618961687831
Email: xboe@xboecn.com; xboewx@xboecn.com
R&d Base: Building 19,216 Xitai Road,Xinwu District,Wuxi City,Jiangsu Province
Production Base: No.128 Chunhui West Road,Hede Town,Sheyang Country,Yancheng

Mainly used for precision high speed polishing of planar elements such as high precision optical glass, quartz, crystal,ceramics, silicon wafer, sapphire and so on. It has three workpiece calipers

Chat Online Get Free Solution

Product details

LP16D/18D/20D/22D Plane Precision Ring Polisher (Polyurethane polishing)

Mainly used for precision high speed polishing of planar elements such as high precision optical glass, quartz, crystal,

ceramics, silicon wafer, sapphire and so on. It has three workpiece calipers

Main technical specification

Product Model	LP16D	LP18D	LP20D	LP22D
Millstone size (granite)	Ф1600 mm	Ф1800 mm	Ф2000 mm	Ф2200 mm
Workpiecering size	Ф600xФ500x60	Ф700xФ600x60	Ф800xФ650x70	Ф850xФ700x70
Jumpiness of millstone	≤0.06mm	≤0.06mm	≤0.08mm	≤0.1mm
Jumpiness of single point	≤0.01mm	≤0.01mm	≤0.01mm	≤0.01mm
Location number	3pcs	3pcs	3pcs	3pcs
Millstone rotating speed	0,5~20RPM	0,4~ 15RPM	0,3~ 15RPM	0,3~15RPM
Processing scope	≤Ф500mm	≤Ф600mm	≤Ф650mm	≤Ф700mm
Total power	6.4kW/380V	7.2kW/380V	16.5kW/380V	18kW/380V
Weight	About 3500kg	About 4500kg	About6000kg	About 7800kg
Size	2160 x 2040 x 1400(mm)	2500 x 2200 x 1480(mm)	2900 x 2600 x 1480(mm)	3450x2950x1700(mm)
All machine can be designed and manufactured as required.
