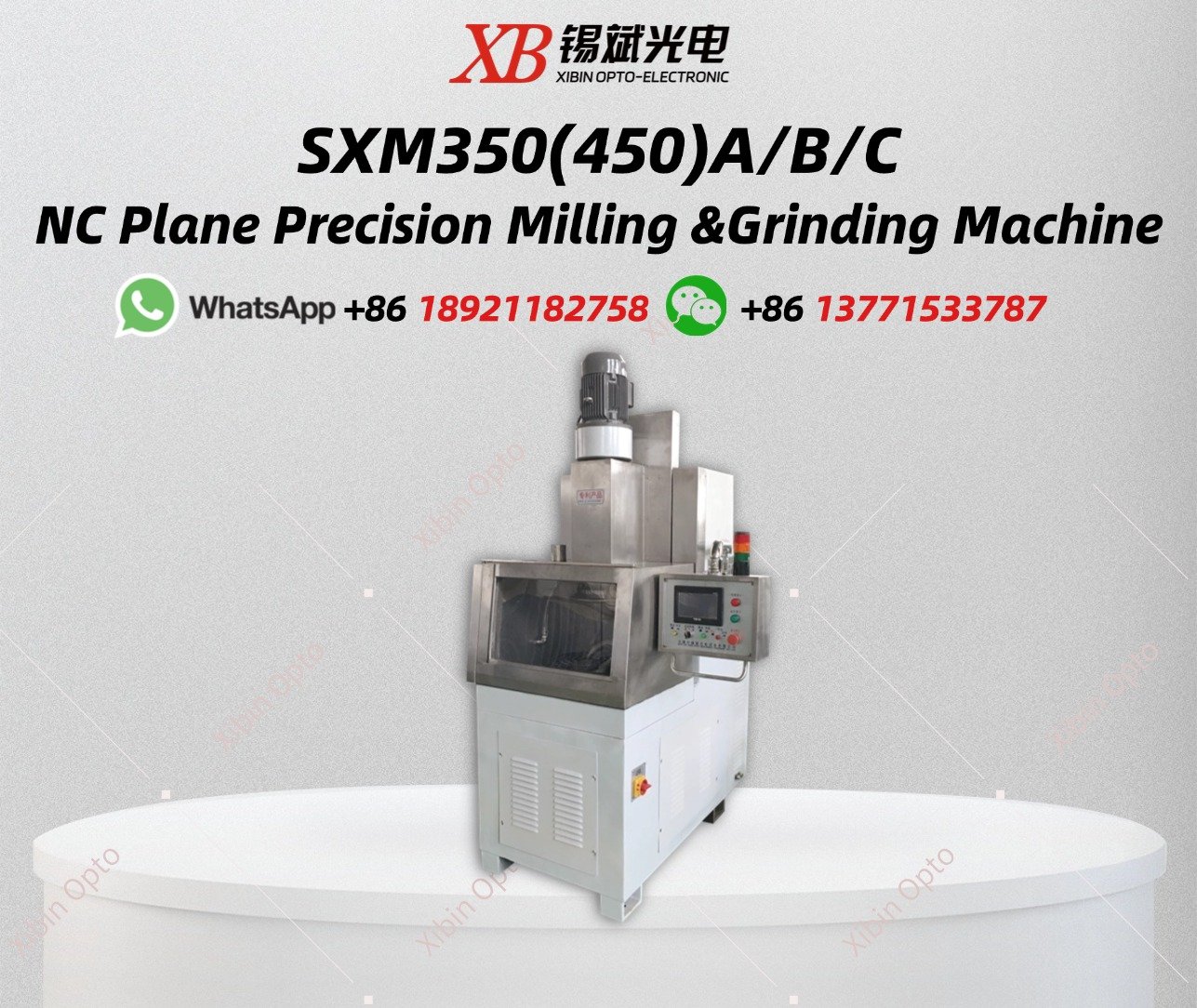

SXM350(450)A/B/C NCPlane Precision Milling &Grinding Machine
This machine tool has high precision, strong cutting force, stablesurface shape and high intelligent one-key operation. Suitable for: opticalglass, ceramics, quartz crystal, crystal, sapphire and other materials of the plane rough grinding, fine grinding.
PLC, touch screen controller, programming control digital processing.stable and reliable operation, to ensure the consistency of workpieceprocessing size. Precision grinding efficiency to improve automation, abutton to complete all processing procedures, a worker can operate morethan one. The electric grinding head, grinding disc, grinding fluid, feedand quick return of the machine can be linked or single action, which isconvenient for machining and adjustment. This machine has limit function.even if occasionally misoperation, will not cause equipment loss. Reserve485 central control interface. Multi - machine networking, suitable for mass production
Three types: Type A table uses magnetic chuck.Type B table uses electromagnetic chuck; Type C table uses ceramic vacuum chuck.
Main technical specification
| Product Model | SXM350A/B/C | SXM450A/B/C |
Workbench diameter | Ф350 mm | Ф450 mm |
Rotating speed of workbench | 0~8RPM | 0~8RPM |
Height of machining parts | ≤200mm | ≤200mm |
| Flatness of machining parts | ≤0.005mm | ≤0.005mm |
| Parallelism of machining parts | ≤0.005mm | ≤0.005mm |
| Diamond grinding wheel | Ф254×Ф188×47mm | Ф326×Ф188×55mm |
| Rotating speed of the grinding head | 0~1400RPM | 0 ~ 1400RPM |
| Feeding speed | 0.001-0.20mm | 0.001-0.20mm |
| Repositioning precision | ±0.005mm | ±0.005mm |
| Total power | 9kW/380V | 9kW/380V |
| Size | 800 x 1400 x 2230(mm) | 950x1560x2100(mm) |
| Weight | About 2000kg | About 2300kg |
All machine can be designed and manufactured as required. |
