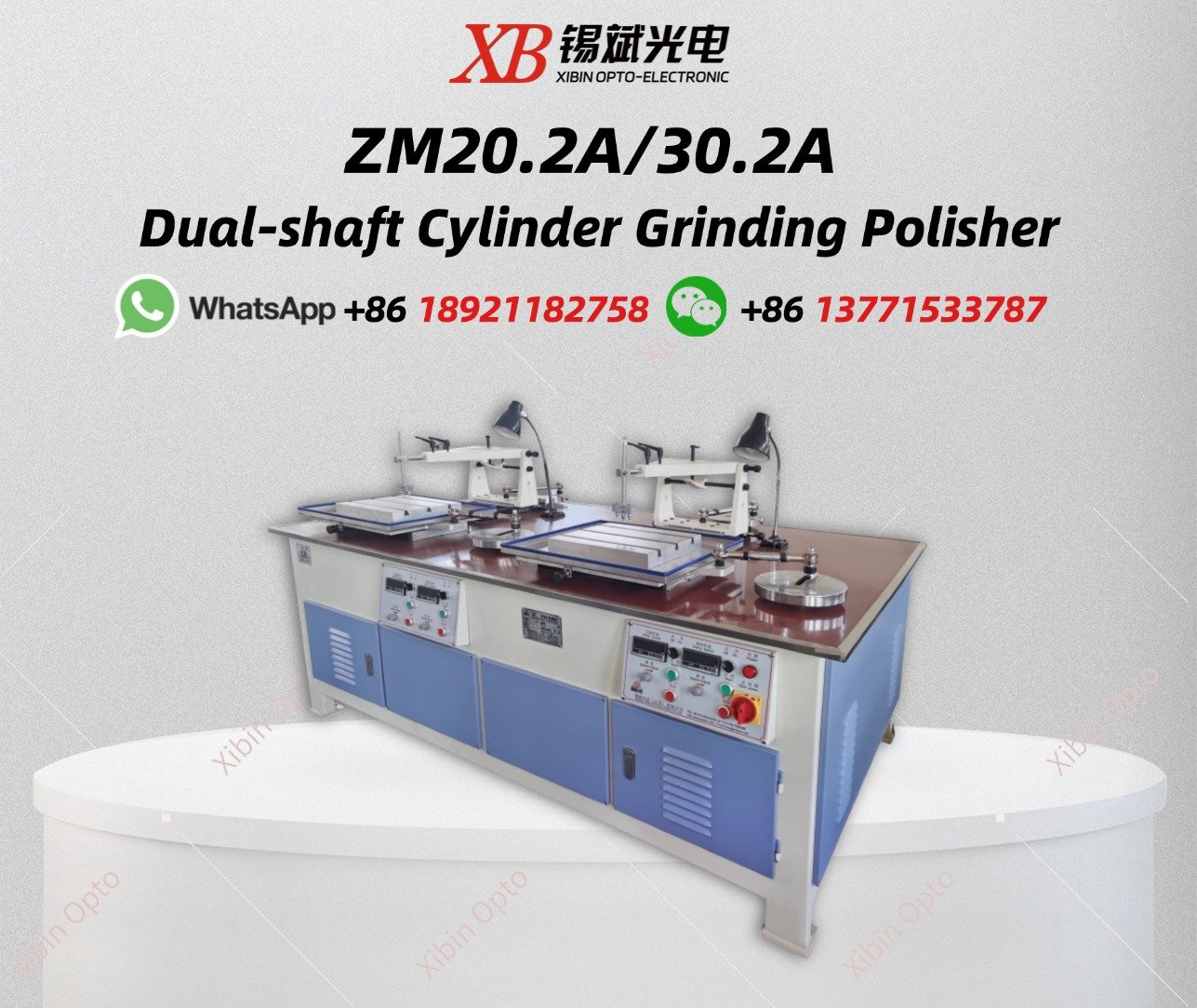

ZM20.2A/30.2A Dual-shaft Cylinder Grinding Polisher
ZM20.2A/30.2A Dual-shaft Cylinder Grinding Polisher

ZM20.2A/30.2A Dual-shaft Cylinder Grinding Polisher

Mainly used for cylindrical grinding and polishing of various optical glass, quartz, crystal and other materials. Alloy
aluminum sink, table, not rusty, practical, durable, beautiful. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

ZM20.2A/30.2A  Dual-shaft Cylinder Grinding Polisher

Mainly used for cylindrical grinding and polishing of various optical glass, quartz, crystal and other materials. Alloy

aluminum sink, table, not rusty, practical, durable, beautiful. (Optional touch screen and knob for operation)

Main technical specification

Product Model

ZM20.2A

ZM30.2A

Size of work plate

230 x 190(mm)

350 x 320 (mm)

Size of T-slot

20 x 9 x 12(mm)

20 x 9 x 12(mm)
Main shaft number

Two shafts

Two shafts
Precision of main shaft≤ 0.02mm≤ 0.02mm

Repeat frequency of work plate

0,30~150 times/min0,30~ 150 times/min

Repeat frequencyof swing shelf

0,30~150 times/min

0,30~150 times/min
Stroke of work plate0~140mm0~180mm
Stroke of swing shelf0~140mm0~180mm
Distance between swing centre and the surface of work plate130mm185mm
Total power1.8kW/380V3.2kW/380V
Size1820x1020x1100(mm)2200x1300x1100(mm)
WeightAbout 700kgAbout 1000kg

All machine can be designed   and manufactured as required.
