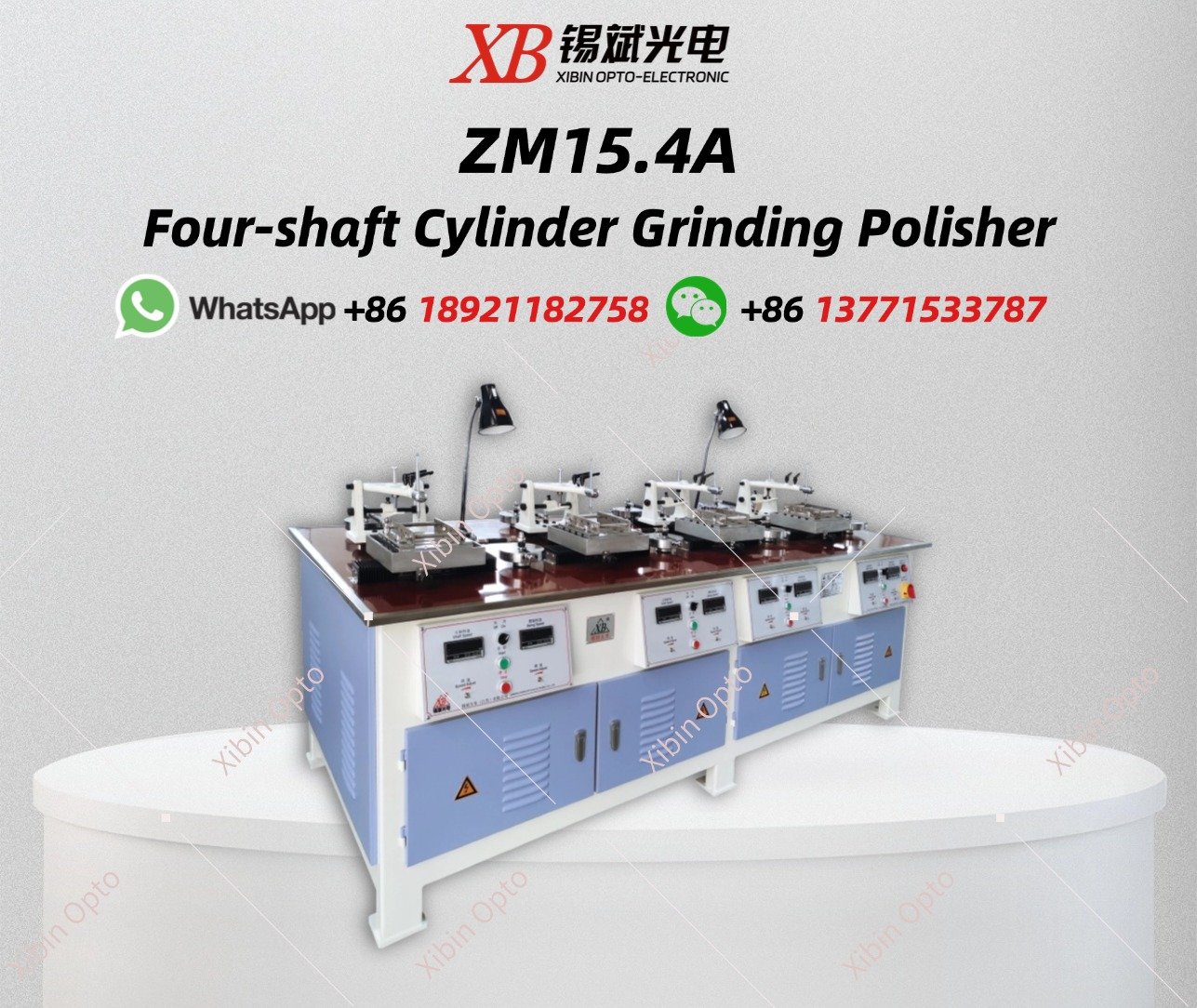

ZM15.4A Four-shaft Cylinder Grinding Polisher
ZM15.4A Four-shaft Cylinder Grinding Polisher
ZM15.4A Four-shaft Cylinder Grinding Polisher

ZM15.4A Four-shaft Cylinder Grinding Polisher

Mainly used for cylindrical grinding and polishing of various optical glass, quartz, crystal and other materials.The single work table has three T grooves, which is convenient for the positioning and fixing of the workpiece. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

ZM15.4A  Four-shaft Cylinder Grinding Polisher

Mainly used for cylindrical grinding and polishing of various optical glass, quartz, crystal and other materials.The single work table has three T grooves, which is convenient for the positioning and fixing of the workpiece. (Optional touch screen and knob for operation)

Main technical specification

Product Model

ZM15.4A

Size of work plate

140x120(mm)

Size of T-slot

20 x 9 x 12(mm)

Main shaft number

Four shafts

Precision of work plate≤ 0.02mm

Repeat frequency of work plate

0,30~150 times/min

Repeat frequencyof swing shelf

0,30~150 times/min

Stroke of work plate0~100mm
Stroke of swing shelf0~100mm
Distance between swing centre and the surface of work plate106mm
Total power1.8kW/380V
Size2470x1000x1100(mm)
WeightAbout 700kg

All machine can be designed   and manufactured as required.
