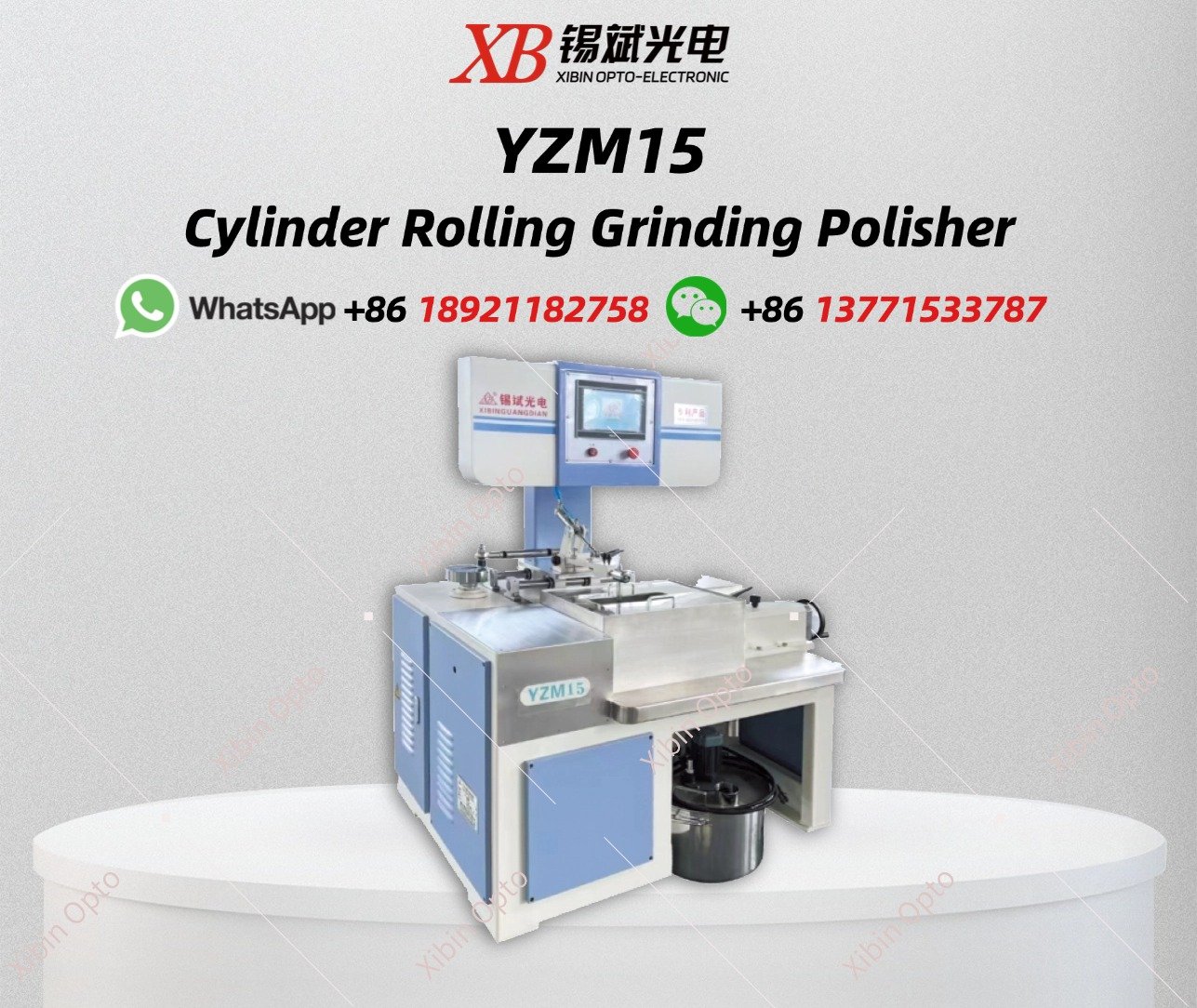

YZM15 Cylinder Rolling Grinding Polisher
YZM15 Cylinder Rolling Grinding Polisher
YZM15 Cylinder Rolling Grinding Polisher

YZM15 Cylinder Rolling Grinding Polisher

The machine is used for polishing and fine grinding semi-cylindrical surface of optical glass, quartz, crystal and metalmould. Parts for rotary motion, polishing abrasives driven by swing mechanism for linear reciprocating motion. Cylindercan be used to adjust the machining pressure
The machine has polishing fluid circulation function, stop processing function, emergency stop function. The operationis more simple, flexible, fully meet the requirements of high precision optical processing technology
Chat Online Get Free Solution

Product details

YZM15 Cylinder Rolling Grinding Polisher

The machine is used for polishing and fine grinding semi-cylindrical surface of optical glass, quartz, crystal and metalmould. Parts for rotary motion, polishing abrasives driven by swing mechanism for linear reciprocating motion. Cylindercan be used to adjust the machining pressure

The machine has polishing fluid circulation function, stop processing function, emergency stop function. The operationis more simple, flexible, fully meet the requirements of high precision optical processing technology

Main technical specification

Product Model

YZM15

Processing scope

≤Ф(10 ~ 150)x250mm

Swing amplitude

0~150mm

Swing set time

0,30~150times/min(As required)

Pneumatic pressureMax.pressure 0.6MPa

Distance from theswing shelf

center to the top center

210mm

The top spindle speed

0,50~250RPM(As required)

Two apex coaxiality≤0.05mm
Apex runout(left)≤0.015mm
Apex runout(right)≤0.015mm
Tip taperMorse2#
The operating systemTouch screen
Total power2.5kW/380V
Size1400 x1060x1800mm
WeightAbout 650kg

All machine can be designed   and manufactured as required.
