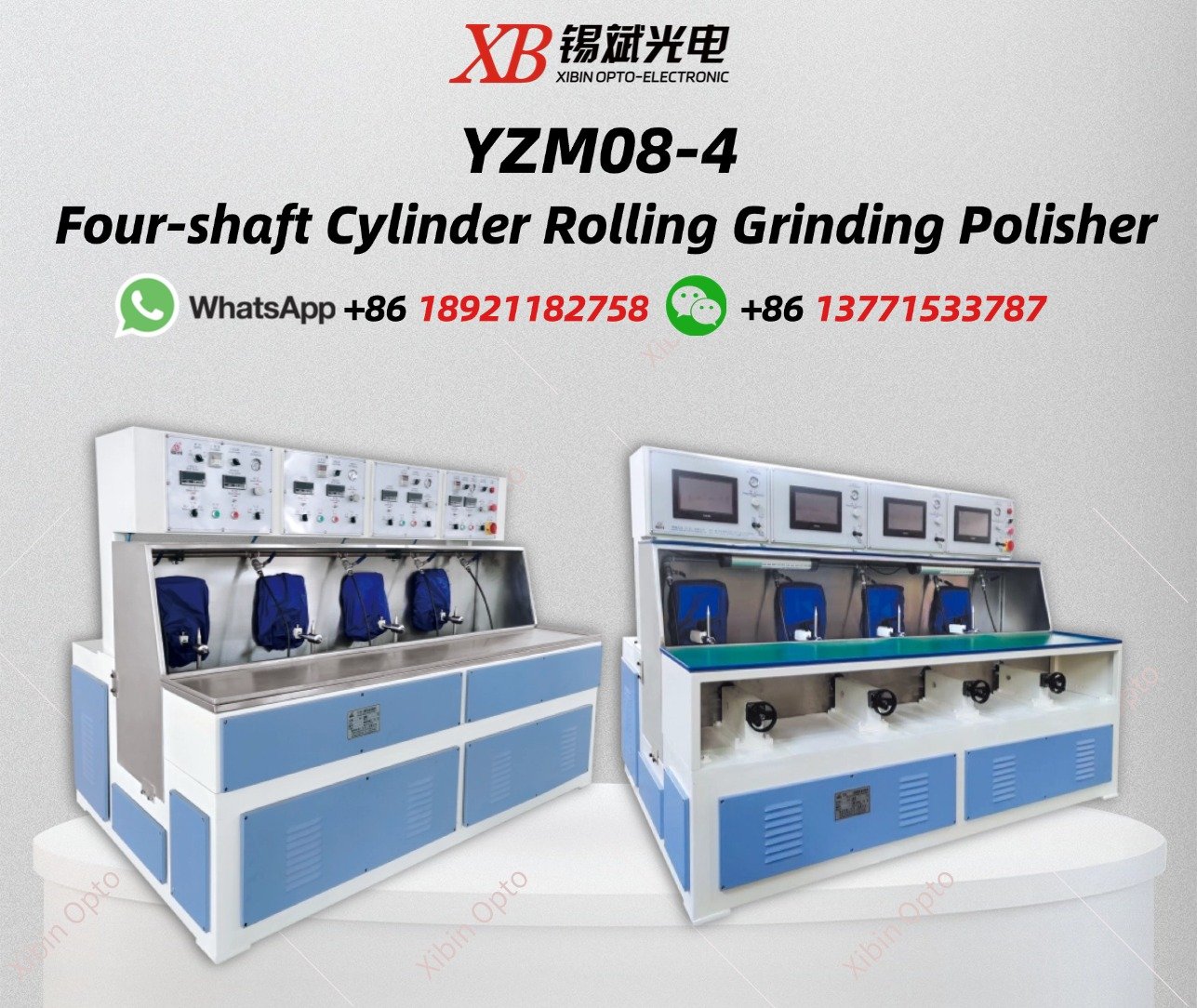

YZM08-4 Four-shaft Cylinder Rolling Grinding Polisher
YZM08-4 Four-shaft Cylinder Rolling Grinding Polisher
YZM08-4 Four-shaft Cylinder Rolling Grinding Polisher

YZM08-4 Four-shaft Cylinder Rolling Grinding Polisher

The machine is used for polishing and fine grinding semi-cylindrical surface of optical glass, quartz, crystal and metalmould. Parts for rotary motion, polishing abrasives driven by swing mechanism for linear reciprocating motion. Cylinder can be used to adjust the machining pressure.
The machine has polishing fluid circulation function, stop processing function, emergency stop function. The operation ismore simple, flexible, fully meet the requirements of high precision optical processing technology. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

YZM08-4 Four-shaft Cylinder Rolling Grinding Polisher

The machine is used for polishing and fine grinding semi-cylindrical surface of optical glass, quartz, crystal and metalmould. Parts for rotary motion, polishing abrasives driven by swing mechanism for linear reciprocating motion. Cylinder can be used to adjust the machining pressure.

The machine has polishing fluid circulation function, stop processing function, emergency stop function. The operation ismore simple, flexible, fully meet the requirements of high precision optical processing technology. (Optional touch screen and knob for operation)

Main technical specification

Product Model

YZM08-4

Processing scope

≤Ф(10 ~ 80)x200mm

Swing amplitude

0~80mm

Swing set time

0,30~150times/min(As required)

Pneumatic pressureMax.pressure 0.6MPa

Distance from theswing shelf

center to the top center

160mm

The top spindle speed

0,60~300RPM(As required)

Two apex coaxiality≤0.05mm
Apex runout≤0.015mm
Tip taperMorse3#
shaft center distanc500mm
Distance between two apexes250mm
Total power4.8kW/380V
Size2130x1220x1600mm
WeightAbout 1200kg

All machine can be designed   and manufactured as required.
