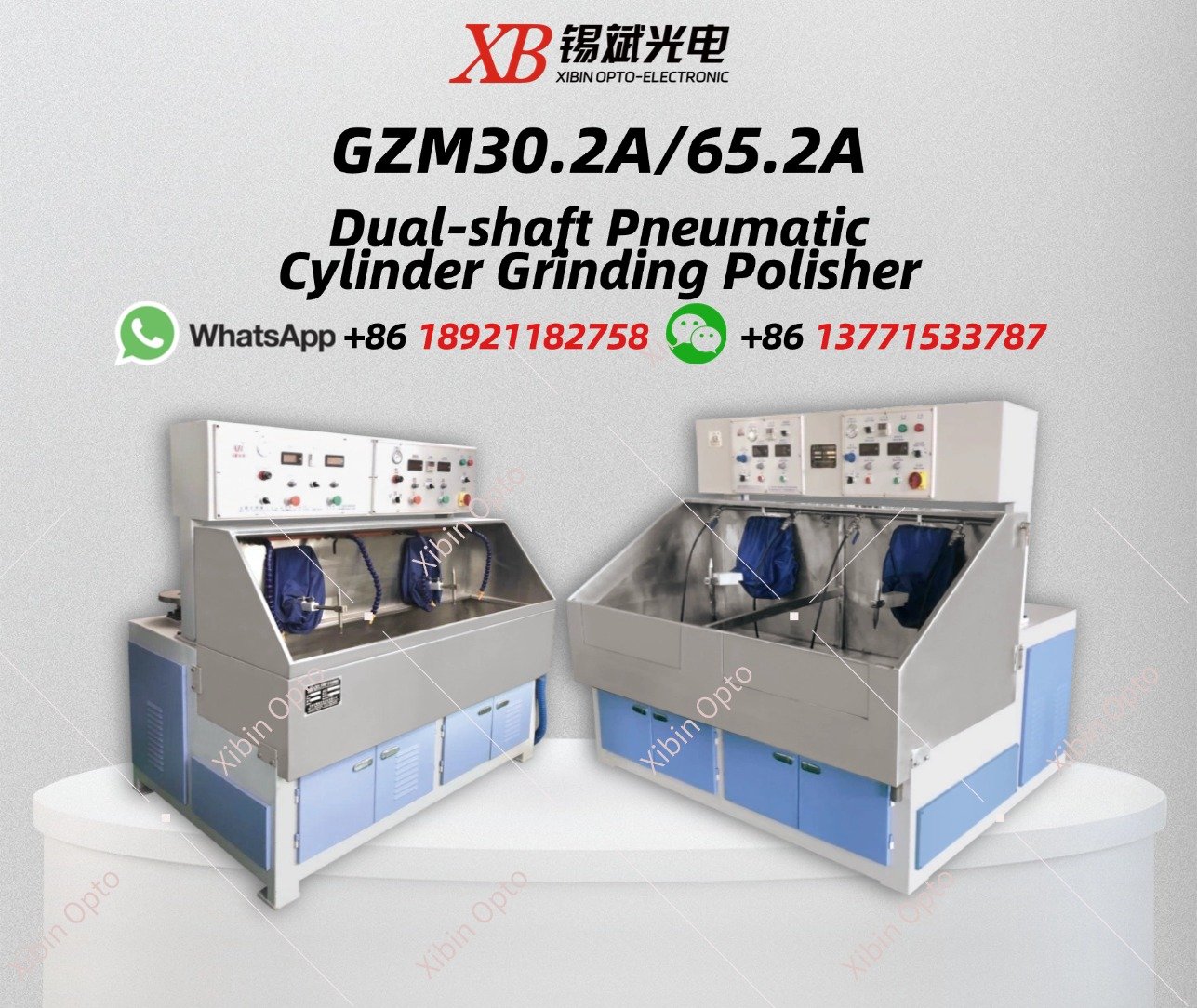

GZM30.2A/65.2A Dual-shaft Pneumatic Cylinder Grinding Polisher
GZM30.2A/65.2A Dual-shaft Pneumatic Cylinder Grinding Polisher

GZM30.2A/65.2A Dual-shaft Pneumatic Cylinder Grinding Polisher

Mainly used for the cylindrical grinding and polishing of various kinds of optical glass, quartz, crystal and other materials
automatic coolant circulation, stainless steel sink. Main pendulum, deputy pendulum independent inverter control. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

GZM30.2A/65.2A Dual-shaft Pneumatic Cylinder Grinding Polisher

Mainly used for the cylindrical grinding and polishing of various kinds of optical glass, quartz, crystal and other materials

automatic coolant circulation, stainless steel sink. Main pendulum, deputy pendulum independent inverter control. (Optional touch screen and knob for operation)

Main technical specification

Product Model

GZM30.2A

GZM65.2A

Size of work plate

340 x 180(mm)

650 x 650(mm)

Distance between main shaft

775mm

900mm
Pneumatic pressure

Max.pressure 0.6MPa

Max.pressure 0.6MPa
Precision of work plate≤ 0.02mm≤ 0.02mm

Repeat frequency of work plate

0,30~150 times/min0,30~ 150 times/min

Repeat frequencyof swing shelf

0,30~150 times/min

0,30~150 times/min
Stroke of work plate0~140mm0~200mm
Stroke of swing shelf0~140mm0~200mm
Distance between swing centre and the surface of work plate165mm170mm
Total power3.2kW/380V6.4kW/380V
Size1650x1150x1690(mm)1860x1500x1690(mm)
WeightAbout 850kgAbout 900kg

All machine can be designed   and manufactured as required.
