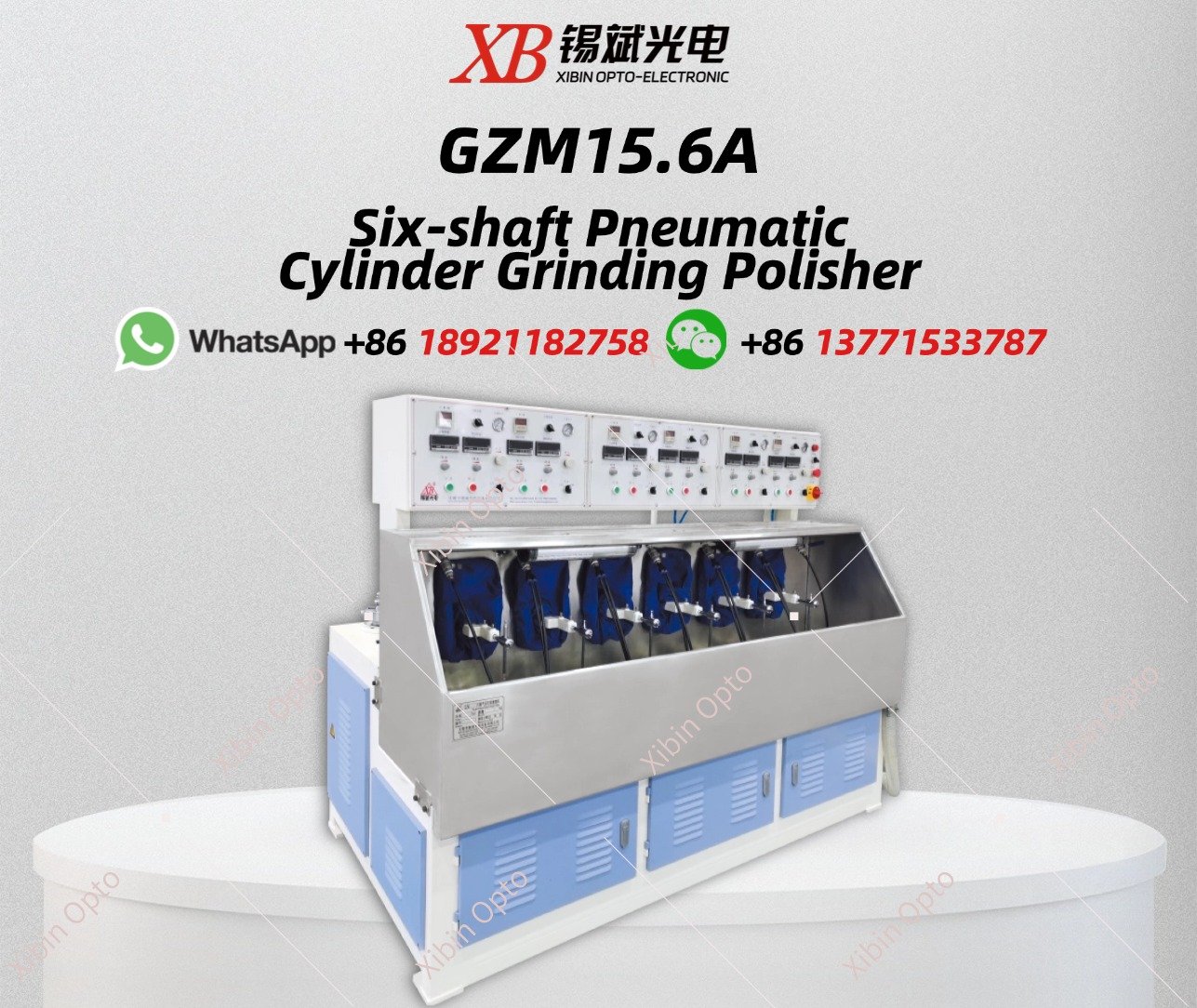

GZM15.6A Six-shaft Pneumatic CylinderGrinding Polisher
GZM15.6A Six-shaft Pneumatic CylinderGrinding Polisher

GZM15.6A Six-shaft Pneumatic CylinderGrinding Polisher

Mainly used for the cylindrical grinding and polishing of various kinds of optical glass, quartz, crystal and other materials,automatic coolant circulation, stainless steel sink. Main pendulum, deputy pendulum independent inverter control. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

GZM15.6A  Six-shaft Pneumatic CylinderGrinding Polisher

Mainly used for the cylindrical grinding and polishing of various kinds of optical glass, quartz, crystal and other materials,automatic coolant circulation, stainless steel sink. Main pendulum, deputy pendulum independent inverter control. (Optional touch screen and knob for operation)

Main technical specification

Product Model

GZM15.6A

Size of work plate

230 x 190(mm)

Distance between main shaft

300mm

Pneumatic pressure

Max. Pressure 0.6MPa

Precisionof work plate≤ 0.02mm

Repeat frequency of work plate

0,30~150 times/min

Repeat frequencyof swing shelf

0,30~150 times/min

Stroke of work plate0~40mm
Stroke of swing shelf0~40mm
Distance between swing centre and the surface of work plate160mm
Total power5kW/380V
Size2170x1050x1650(mm)
WeightAbout 1200kg

All machine can be designed   and manufactured as required.
