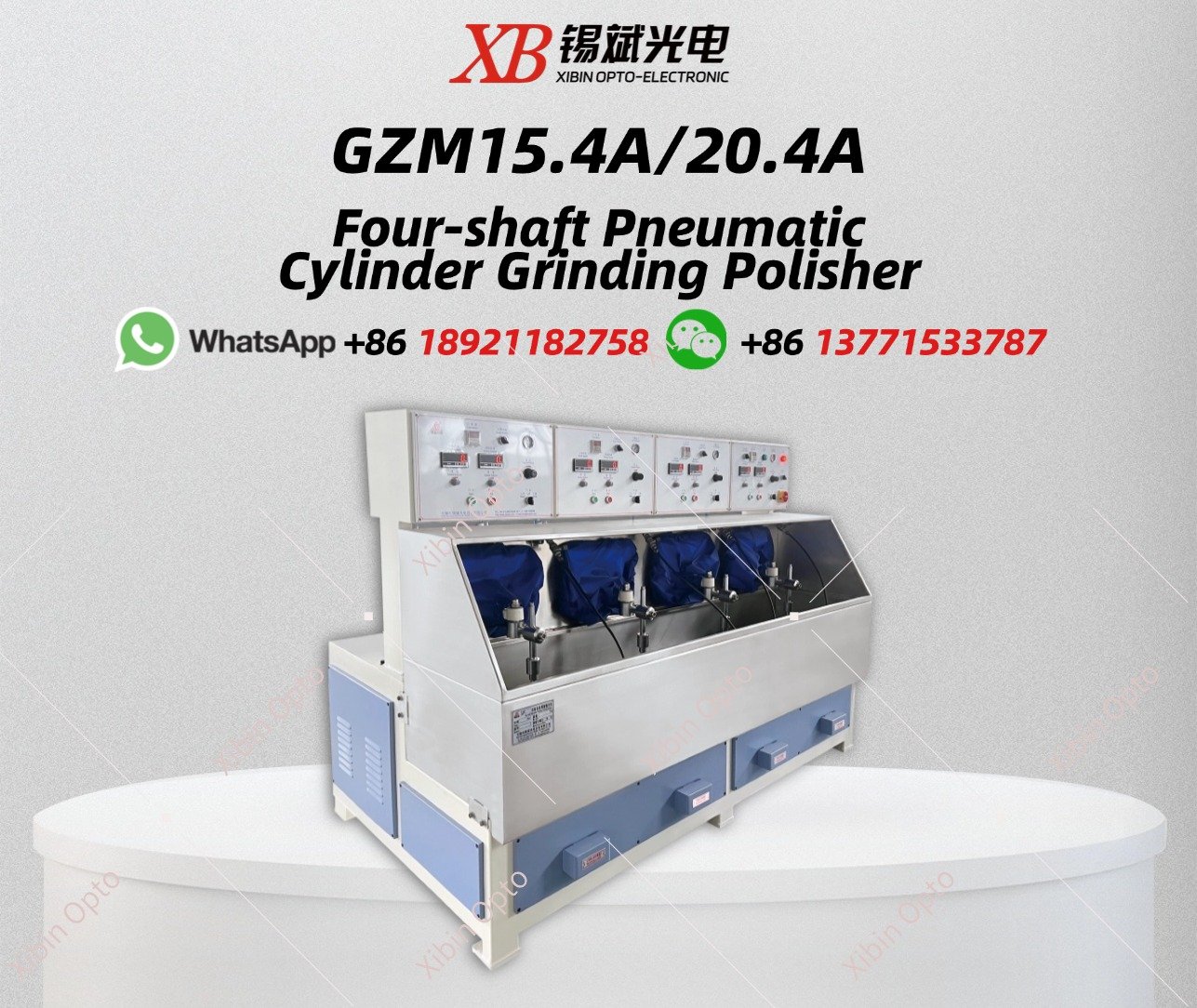

GZM15.4A/20.4A Four-shaft Pneumatic Cylinder Grinding Polisher
GZM15.4A/20.4A Four-shaft Pneumatic Cylinder Grinding Polisher

GZM15.4A/20.4A Four-shaft Pneumatic Cylinder Grinding Polisher

Mainly used for the cylindrical grinding and polishing of various kinds of optical glass, quartz, crystal and other materials,automatic coolant circulation, stainless steel sink. Main pendulum, deputy pendulum independent inverter control. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

GZM15.4A/20.4A Four-shaft Pneumatic Cylinder Grinding Polisher

Mainly used for the cylindrical grinding and polishing of various kinds of optical glass, quartz, crystal and other materials,automatic coolant circulation, stainless steel sink. Main pendulum, deputy pendulum independent inverter control. (Optional touch screen and knob for operation)

Main technical specification

Product Model

GZM15.4A

GZM20.4A

Size of work plate

140 x 120(mm)

250 x 180(mm)

Distance between main shaft

500mm

540mm
Pneumatic pressure

Max. Pressure 0.6MPa

Max. Pressure 0.6MPa
Precision of work plate≤ 0.02mm≤ 0.02mm

Repeat frequency of work plate

0,30~150 times/min0,30~ 150 times/min

Repeat frequencyof swing shelf

0,30~150 times/min

0,30~150 times/min
Stroke of work plate0~100mm0~80mm
Stroke of swing shelf0~100mm0~80mm
Distance between swing centre and the surface of work plate165mm165mm
Total power3.4kW/380V6.4kW/380V
Size2200 x 1050 x 1650(mm)2250 x 1100 x 1690(mm)
WeightAbout 1200kgAbout 1300kg

All machine can be designed   and manufactured as required.
