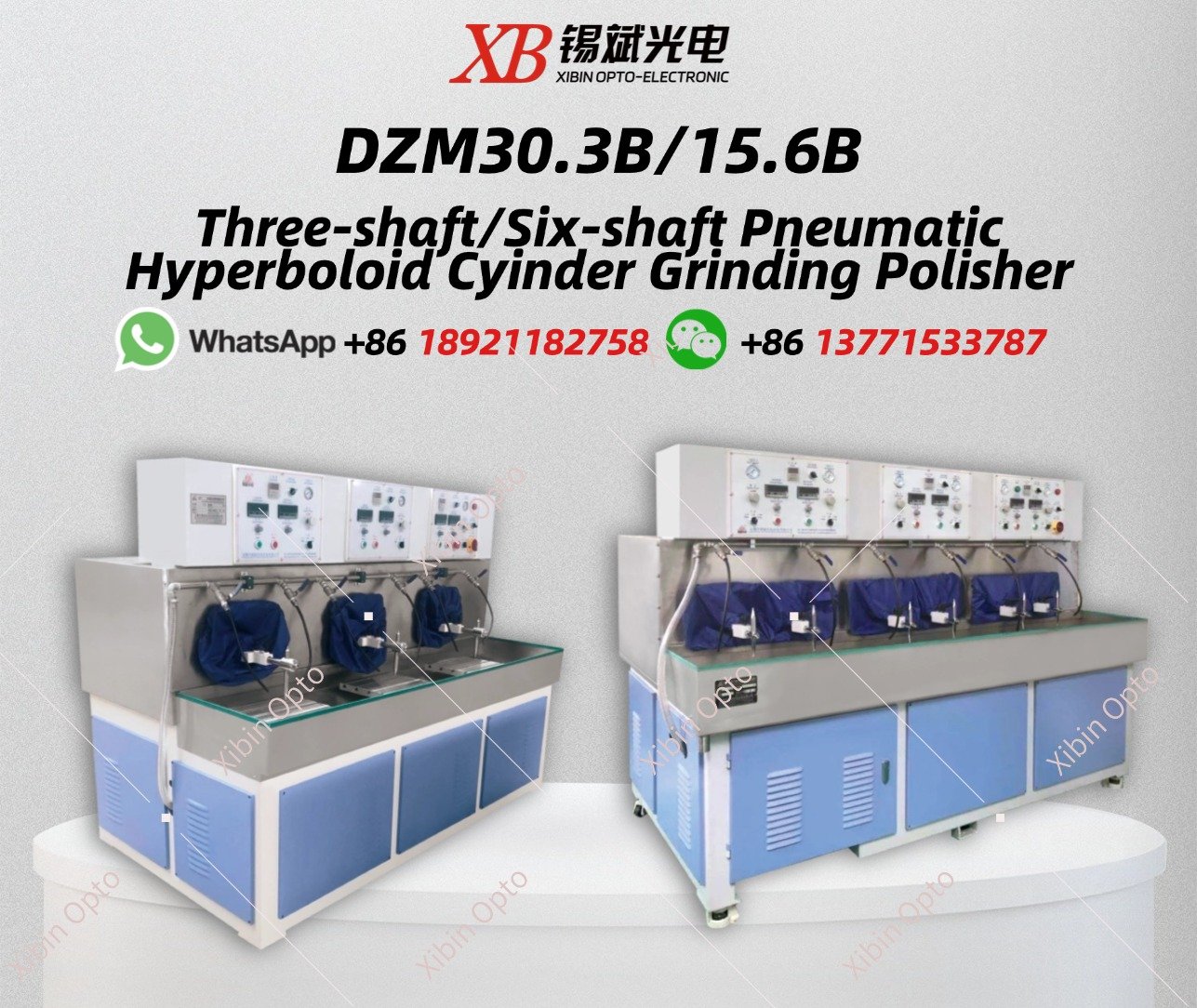

DZM30.3B/15.6B Three-shaft/Six-shaft Pneumatic Hyperboloid Cyinder Grinding Polisher
DZM30.3B/15.6B Three-shaft/Six-shaft Pneumatic Hyperboloid Cyinder Grinding Polisher
DZM30.3B/15.6B Three-shaft/Six-shaft Pneumatic Hyperboloid Cyinder Grinding Polisher

DZM30.3B/15.6B Three-shaft/Six-shaft Pneumatic Hyperboloid Cyinder Grinding Polisher

Mainly used for the cylindrical grinding and polishing of various kinds of optical glass, quartz, crystal and other materials.
The workbench is fixed. The thimble swings both longitudinally and laterally to complete the grinding and polishing of thetwo curved surfaces. Automatic coolant circulation,stainless steel sink Main pendulum, deputy pendulum independent inverter control. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

DZM30.3B/15.6B Three-shaft/Six-shaft Pneumatic Hyperboloid Cyinder Grinding Polisher

Mainly used for the cylindrical grinding and polishing of various kinds of optical glass, quartz, crystal and other materials.

The workbench is fixed. The thimble swings both longitudinally and laterally to complete the grinding and polishing of thetwo curved surfaces. Automatic coolant circulation,stainless steel sink Main pendulum, deputy pendulum independent inverter control. (Optional touch screen and knob for operation)

Main technical specification

Product Model

DZM30.3B

DZM15.6B

Size of work plate

340 x 340 (mm)

140 x 120 (mm)
Pneumatic pressure

Max.pressure 0.6MPa

Max.pressure 0.6MPa
Longitudinal stroke of swing shelf0~100mm0~100mm
Longitudinal beat of swing shelf≤0.02mm≤0.02mm

Longitudinal reciprocating frequency of swing shelf

0,30~150 times/min0,30~ 150 times/min

Transverse stroke of swing shelf

0~100mm

0~100mm
Transverse beat of swing shelf≤0.02mm≤0.02mm
Transverse reciprocating frequency of swing shelf0,30~150 times/min0,30~150 times/min
Distance between swing centre and the surface of work plate170mm110mm
Total power4.8kW/380V2.8kW/380V
Size2150 x 1180 x 1730(mm)2420 x 1180 x1730(mm)
WeightAbout 1500kgAbout 1100kg

All machine can be designed   and manufactured as required.
