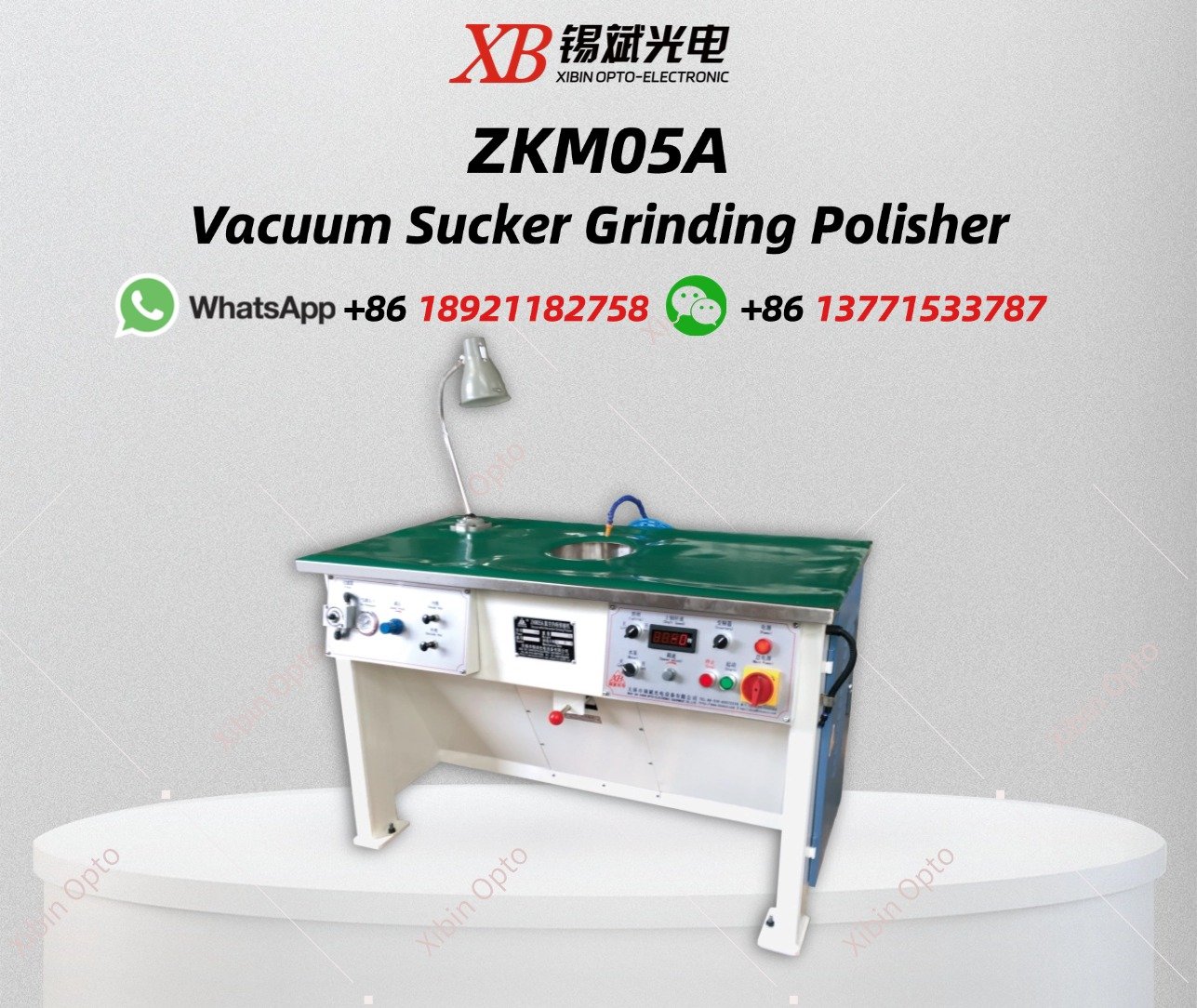

ZKM05A Vacuum Sucker Grinding Polisher
ZKM05A Vacuum Sucker Grinding Polisher

ZKM05A Vacuum Sucker Grinding Polisher

This machine is a manual polishing and flanging equipment for small lens. It uses compressed air to generate vacuum through a vacuum generator to fix the workpiece. Foot switch control spindle start and stop ,at the same time, the correspondingdelay control workpiece suction and release. External suction tool can also be used to absorb the parts, the main shaft installed chamfering die for chamfering
Chat Online Get Free Solution

Product details

ZKM05A Vacuum Sucker Grinding Polisher

This machine is a manual polishing and flanging equipment for small lens. It uses compressed air to generate vacuum through a vacuum generator to fix the workpiece. Foot switch control spindle start and stop ,at the same time, the correspondingdelay control workpiece suction and release. External suction tool can also be used to absorb the parts, the main shaft installed chamfering die for chamfering

Main technical specification

Product Model

ZKM05A

Processing scope

Ф≤50mm

Amount of main shaft

One shaft

Speed of main shaft

0,300 ~1400RPM

Screw thread of main shaftM20(setting circle:Ф 22)
Pneumatic pressure

≥0.3MPa

Total power0.5kW/380V
Size1200 x600 x 810 (mm)
WeightAbout 400kg

All machine can be designed   and manufactured as required.
