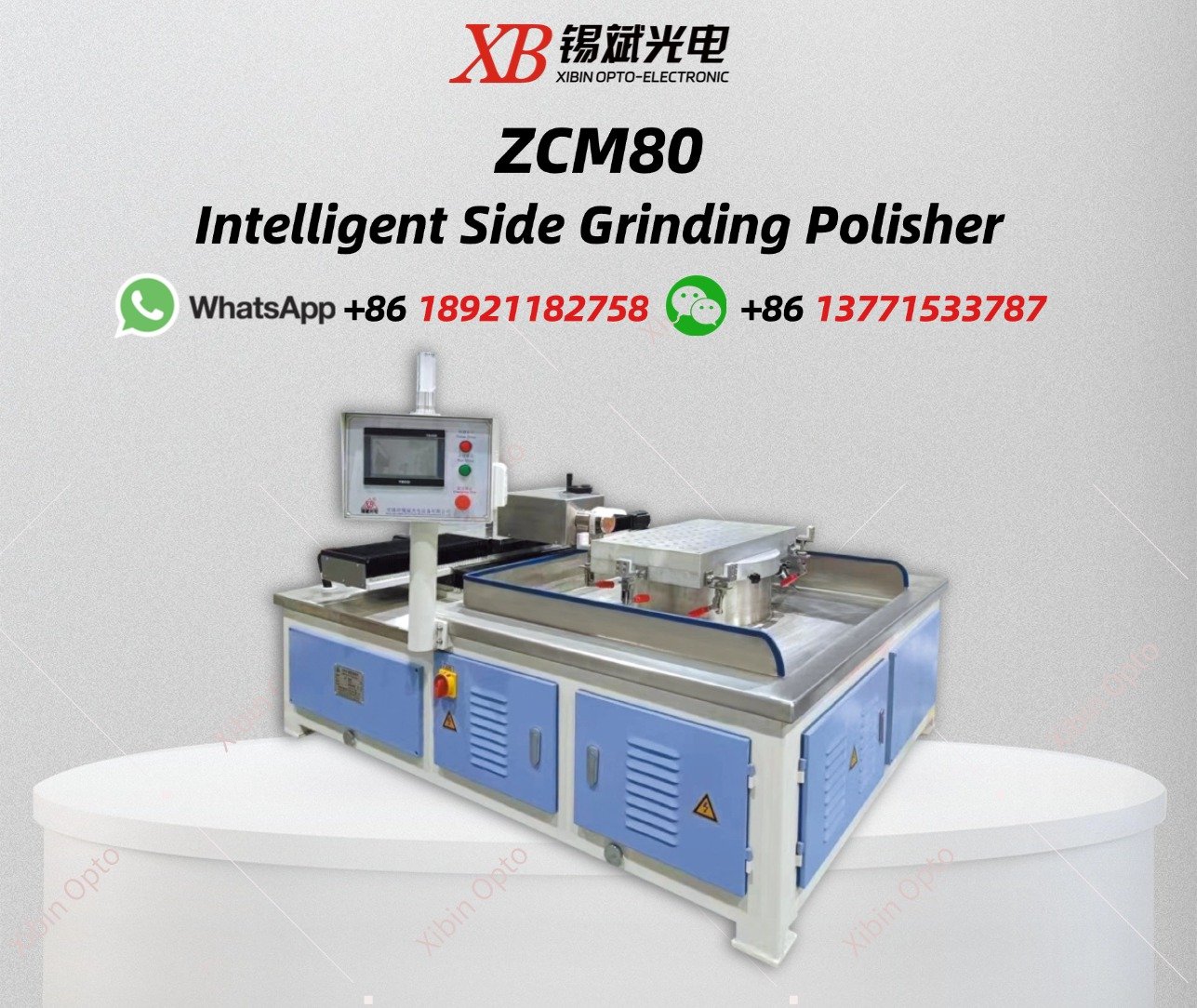

ZCM80 Intelligent Side Grinding Polisher
ZCM80 Intelligent Side Grinding Polisher

ZCM80 Intelligent Side Grinding Polisher

This machine is mainly used for side grinding and polishing of straight edge parts. The parts are placed on the vacuum cupsof the workbench. Work table X, Y direction servo linear movement, grinding head with X, Y direction automatic fine-tuning function, as well as vertical adjustment function.
Chat Online Get Free Solution

Product details

ZCM80 Intelligent Side Grinding Polisher

This machine is mainly used for side grinding and polishing of straight edge parts. The parts are placed on the vacuum cupsof the workbench. Work table X, Y direction servo linear movement, grinding head with X, Y direction automatic fine-tuning function, as well as vertical adjustment function.

Main technical specification

Product Model

ZCM80

Grinding head dia

Ф60 m

Machinin workpiece length

800mm

Machiningworkpiece thickness

40mm

Indexing accuracy≤0.03°
Grinding head speed

500RPM

Total power5kW/380V
Size1870x1360x890(mm)
WeightAbout 800kg

All machine can be designed   and manufactured as required.
