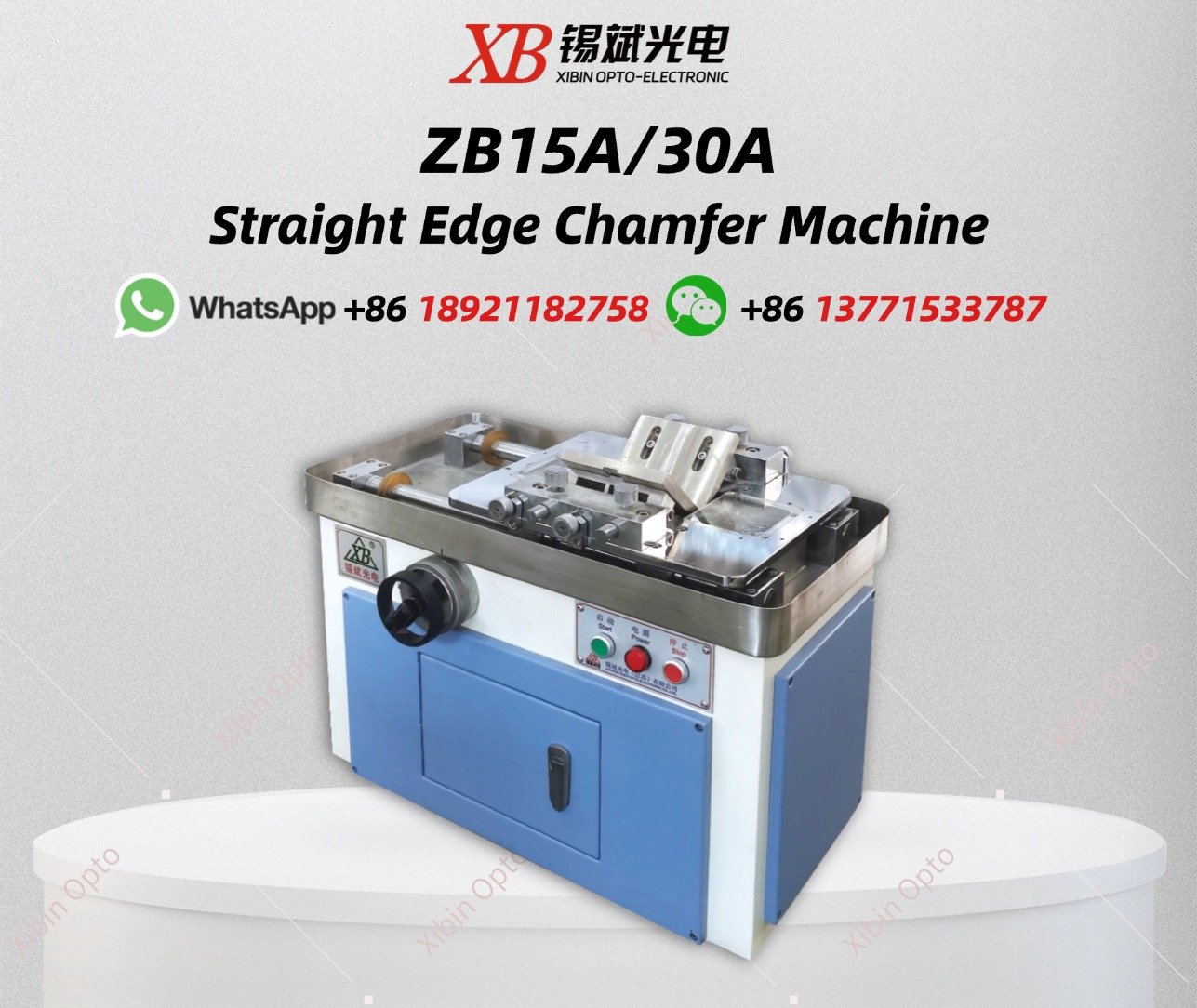

ZB15A/30A Straight Edge Chamfer Machine
ZB15A/30A Straight Edge Chamfer Machine
ZB15A/30A Straight Edge Chamfer Machine

ZB15A/30A Straight Edge Chamfer Machine

Mainly used for manual chamfering of straight edge parts in optical field. The parts are placed between the two templates.and are pressed by hand to push the sliding platform to move in a straight line on the cylindrical guide rail
The lifting precision of the spindle of the grinding wheel of machine tool is 0.0lmm. The adjustable range of chamfering is 45~90°.
Chat Online Get Free Solution

Product details

ZB15A/30A Straight Edge Chamfer Machine

Mainly used for manual chamfering of straight edge parts in optical field. The parts are placed between the two templates.and are pressed by hand to push the sliding platform to move in a straight line on the cylindrical guide rail

The lifting precision of the spindle of the grinding wheel of machine tool is 0.0lmm. The adjustable range of chamfering is 45~90°.

Main technical specification

Grinding wheel dia

Ф90 mm

Ф90 mm

Chamfer length

5~150mm

5~300mm

Chamfer range

15° ~75°

15° ~75°
Chamfer precision≤0.02mm≤0.02mm
Spindle speed

3910RPM

3910RPM

Eccentric plate diaФ490 mmФ590 mm
Total power0.5kW/380V0.5kW/380V
Size750 x 550 x 650 (mm)1200x 550x650 (mm)
WeightAbout 200kgAbout 400kg

All machine can be designed   and manufactured as required.
