Products

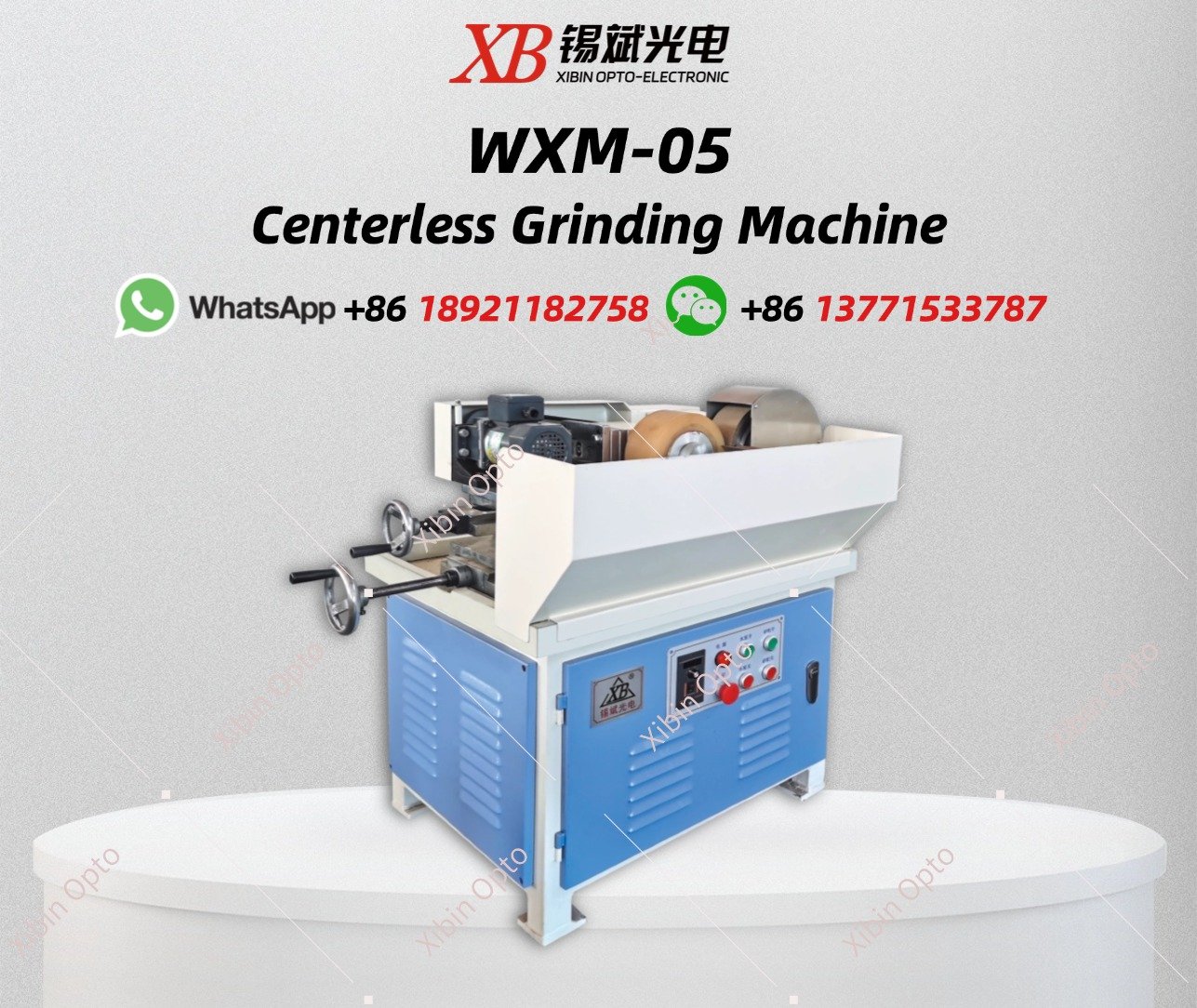

WXM-05 Centerless Grinding Machine
WXM-05 Centerless Grinding Machine

WXM-05 Centerless Grinding Machine

This machine toolis used for the cylindrical grinding of rod -shaped parts made of optical glass, quartz, crystal and other materials

Product details

WXM-05 Centerless Grinding Machine

This machine toolis used for the cylindrical grinding of rod -shaped parts made of optical glass, quartz, crystal and other materials

Main technical specification

Product Model

WXM-05

Processing scope

Ф2mm~Ф50mm

Speed of main shaft

1400r/min

Spindle runout

≤0.02mm

Friction wheel speed15 ~ 70r/min(can be customized according to user requirements)
Operating system

Button operation

Total power1.5kW/380V
Size680 x 660 x 880 (mm)
WeightAbout 100kg

All machine can be designed   and manufactured as required.
