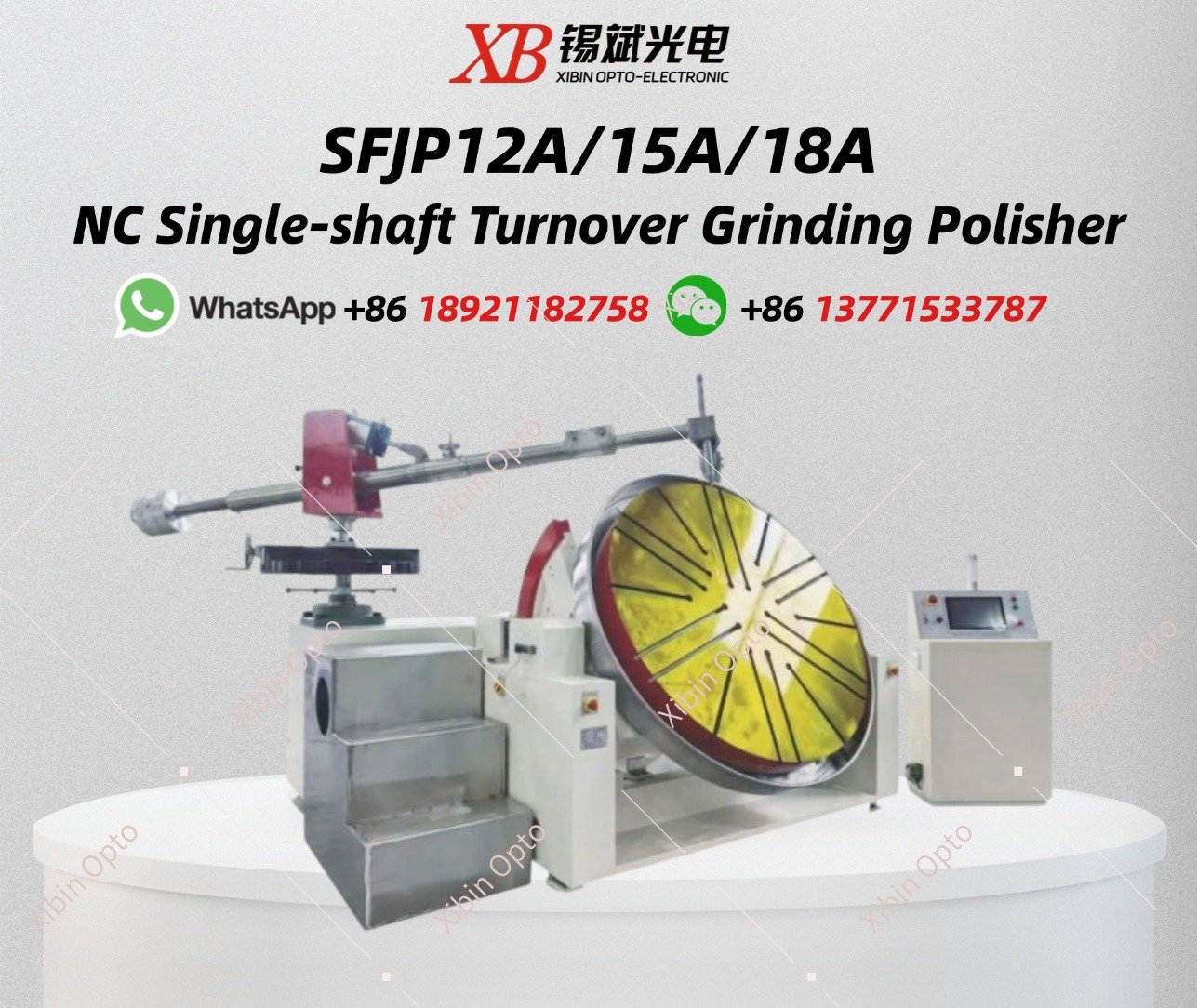

SFJP12A/15A/18A NC Single-shaft Turnover Grinding Polisher
Mainly used for grinding and polishing planar, spherical and aspheric surfaces of large aperture optical glass, quartz,crystal and other materials.
The machine adopts PLC control system, in order to level the testing requirements of the workpiece, the table can besmooth electric and manual flip 90 degrees. (Optional touch screen and knob for operation)
Main technical specification
| Product Model | SFJP12A | SFJP15A | SFJP18A |
Operation platform dia | Ф1200 mm | Ф1500 mm | Ф1800 mm |
Processing scope | Ф300-Ф1000 mm | Ф300-Ф1300 mm | Ф300-Ф1600 mm |
Operation platform rotating speed | 0,3~ 15RPM | 0,2~10RPM | 0,2~10RPM |
| Jumpiness of millstone | ≤0.08mm | ≤0.1mm | ≤0.1mm |
| Swing range | The max adjustable rangeof swing plate is 200mm Shrinkage range of swing pole: 150mm Swing times: 0,3~15times/min | The max adjustable rangeof swing plate is 250mm Shrinkage range of swing pole: 200mm Swing times : 0,5 ~ 25times/min | The max adjustable range of swing plate is 500mm Shrinkage range of swing pole:-200~+400mm Swing times : 0,6 ~ 30times/min |
| Eccentric plate dia | Ф490 mm | Ф590 mm | Ф1000 mm |
Operation platform | 90°(Power operation, Manual operation) | 90°(Power operation, Manual operation) | 90°(Power operation, Manual operation) |
| Operation mode | PLC control, touch screen operation | PLC control, touch screen operation | PLC control, touch screen operation |
| Total power | 11kW/380V | 16kW/380V | 21kW/380V |
| Size | 2430 x 2210 x 2030(mm) | 2800 x 2750 x 2150(mm) | 4900 x 3500 x 2800(mm) |
| Weight | About 4000kg | About 6500kg | About 18000kg |
All machine can be designed and manufactured as required. |
