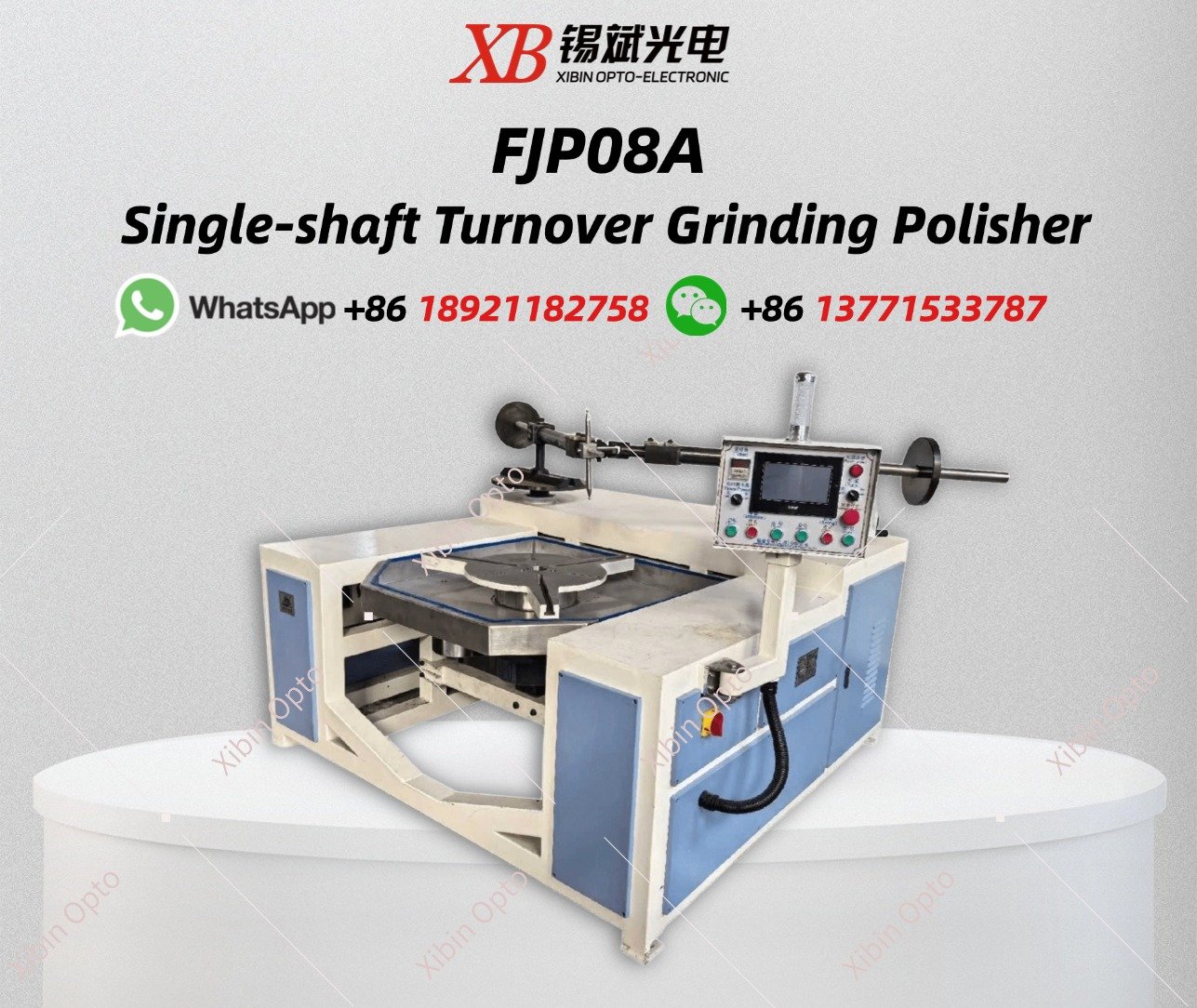

FJP08A Single-shaft Turnover Grinding Polisher
FJP08A Single-shaft Turnover Grinding Polisher

FJP08A Single-shaft Turnover Grinding Polisher

Mainly used for grinding and polishing planar, spherical and aspheric surfaces of large aperture optical glass, quartz,crystal and other materials.In orderto level the testing requirements of the workpiece, the table can be smooth electric and manual flip 90 degrees
Chat Online Get Free Solution

Product details

FJP08A  Single-shaft Turnover Grinding Polisher

Mainly used for grinding and polishing planar, spherical and aspheric surfaces of large aperture optical glass, quartz,crystal and other materials.In orderto level the testing requirements of the workpiece, the table can be smooth electric and manual flip 90 degrees

Main technical specification

Operation platform dia

Ф900 mm

Processing scope

≤Ф800 mm

Operation platform rotating speed

0,6~30RPM

Operation platform90° (Manual operation)
Swing range

The max adjustable range of swing plate is 300mm

Shrinkage range of swing pole:290mm

Swing times:0, 4~20 tims/min

Eccentric plate diaФ450 mm
Operation modePLC control, touch screen operation
Total power5.2kW/380V
Size2600x1800x1500(mm)
WeightAbout 1400kg

All machine can be designed   and manufactured as required.
