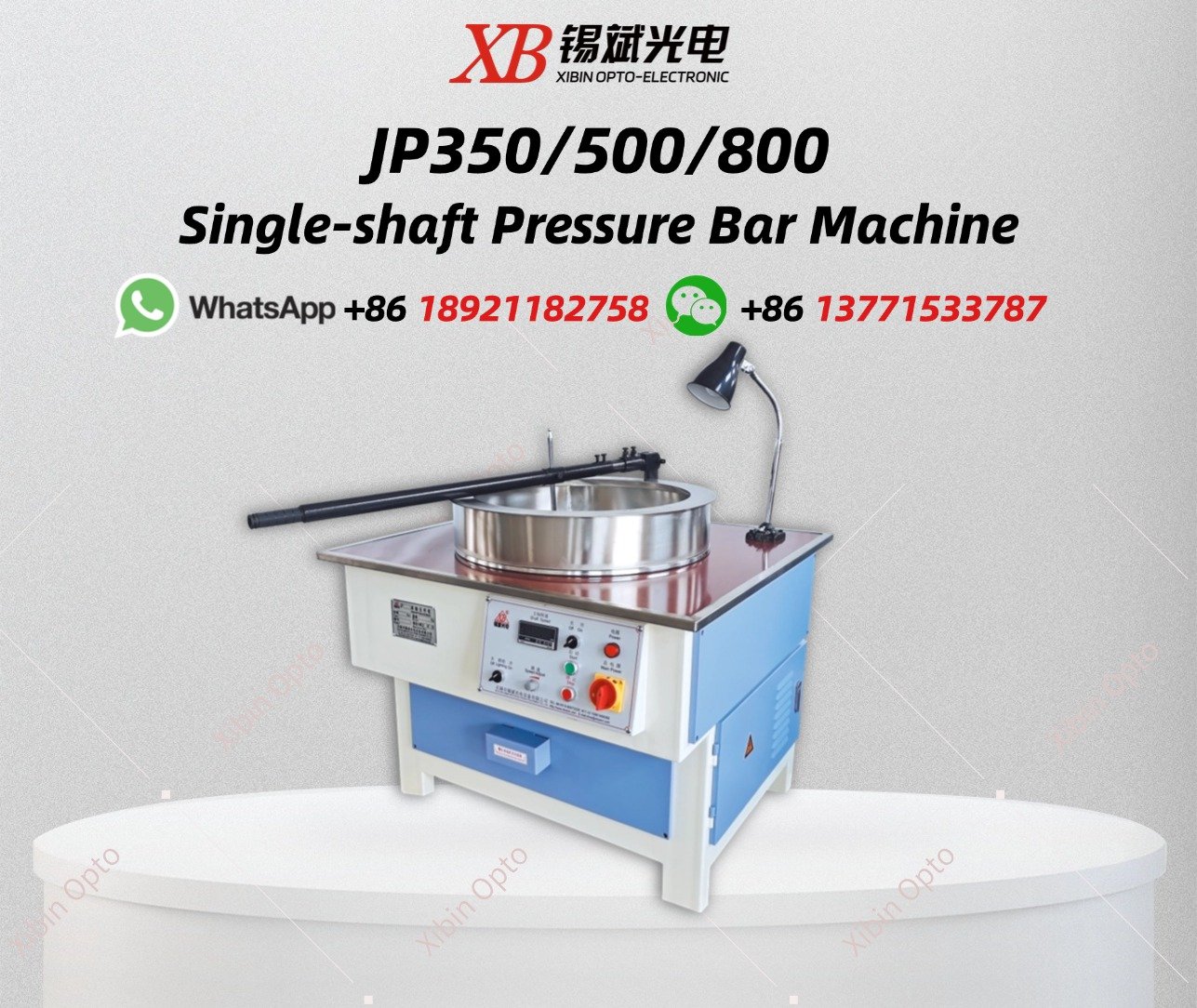

JP350/500/800 Single-shaft Pressure Bar Machine
JP350/500/800 Single-shaft Pressure Bar Machine

JP350/500/800 Single-shaft Pressure Bar Machine

Mainly used for grinding and polishing surface and concave spherical lens
Chat Online Get Free Solution

Product details

JP350/500/800 Single-shaft Pressure Bar Machine

Mainly used for grinding and polishing surface and concave spherical lens

Main technical specification

Product Model

JP350

JP500JP800

Max diameter of millstone

Ф350 mm

Ф500 mmФ800 mm

Parameter of main shaft

(One shaft)Conicity 1:8

(One shaft) M27x 3Conicity 1:8(One shaft) M56x 5.5

Precision of main shaft

≤0.02mm

≤0.02mm≤0.02mm
Speed of main shaft0.140~700RPM0,100~500RPM0,60 ~ 300 RPM
Total power0.85kW/380V1.6kW/380V3.8kW/380V
Size910x850x1050(mm)1150x1150x1100(mm)1600x1350x1130(mm)
WeightAbout 150kgAbout 250kgAbout 700kg

All machine can be designed   and manufactured as required.
