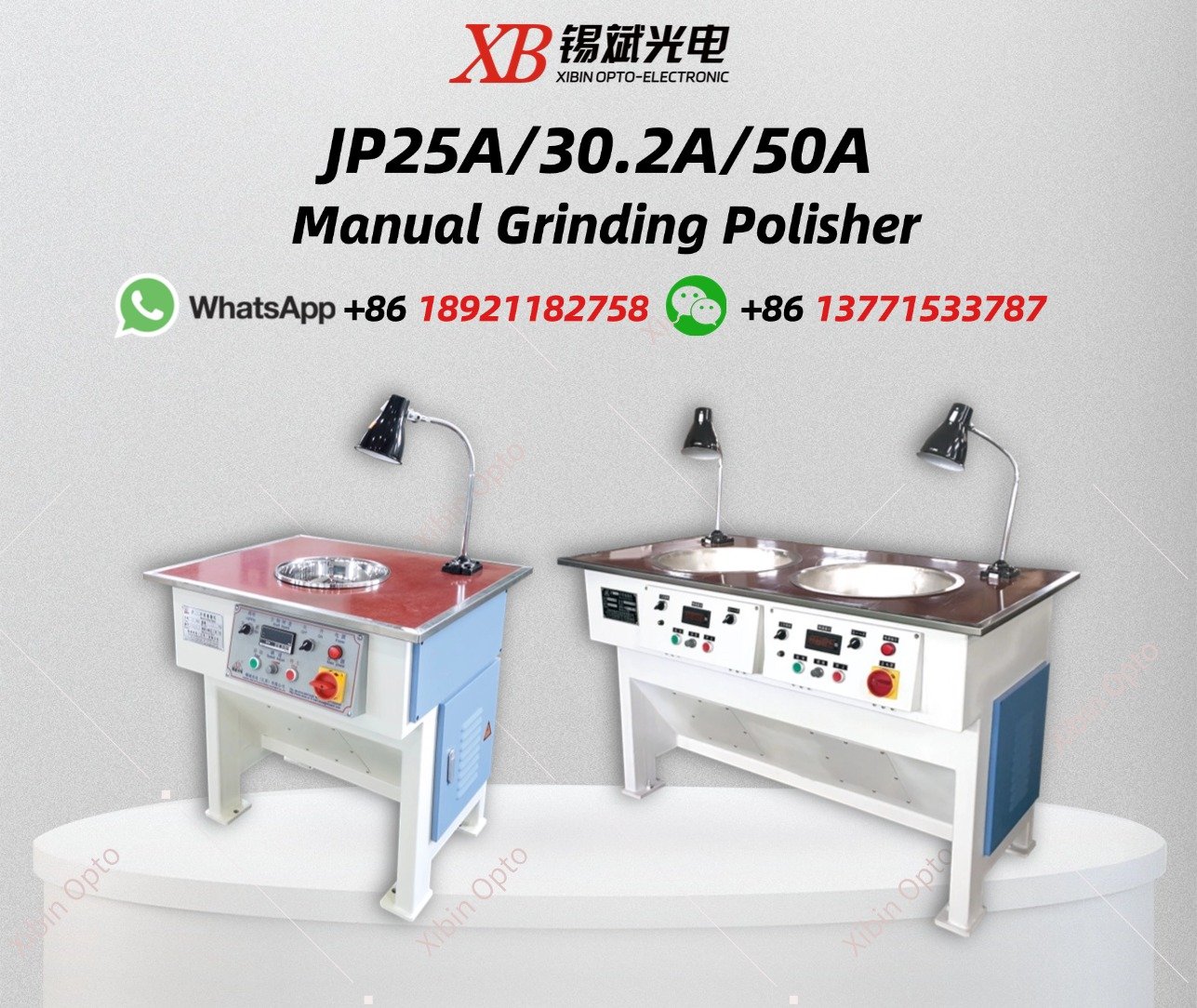

JP25A/30.2A/50A ManualGrinding Polisher
JP25A/30.2A/50A ManualGrinding Polisher

JP25A/30.2A/50A ManualGrinding Polisher

Mainly used for manual grinding and polishing of the plane surface and curving surface of optical glass, quartz, crystal,electronic components and other materials.
Chat Online Get Free Solution

Product details

JP25A/30.2A/50A ManualGrinding Polisher

Mainly used for manual grinding and polishing of the plane surface and curving surface of optical glass, quartz, crystal,electronic components and other materials.

Main technical specification

Product Model

JP25A

JP50AJP30.2A

Max diameter of millstone

Ф250 mm

Ф500 mmФ300 mm

Parameter of main shaft

(One shaft)Conicity 1:8

One shaft,Thread M27x3Two shafts,Thread M27x3

Precision of main shaft

≤0.02mm

≤0.02mm≤0.02mm
Speed of main shaft0.140~700RPM0,100~500RPM0.100~500RPM
Tank dia

Ф300 mm

Ф600 mm

Ф400 mm

Eccentric plate diaФ490 mmФ590 mmФ1000 mm
Total power1kW/380V1.6kW/380V1.7kW/380V
Size800x720x1100(mm)1200x850x1100(mm)1300x670x1100(mm)
WeightAbout 160kgAbout 250kgAbout 250kg

All machine can be designed   and manufactured as required.
